Differences between DL1 PRO and DL1 WP
This section contains information about the DL1 WP, highlighting the differences between the DL1 WP and the DL1 PRO

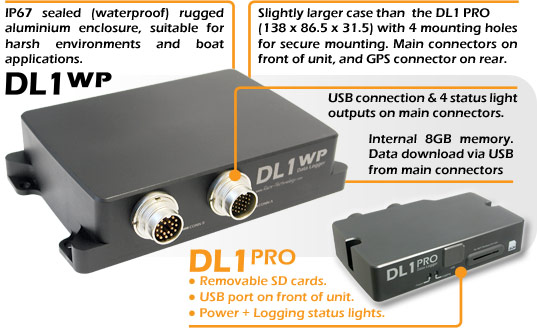

The DL1 WP is a fully sealed version of the DL1 PRO. The main technical difference are:
| DL1 PRO
| DL1 WP
|
| USB connector on case
| USB connector on flying leads
|
| Removable SD card
| Internal fixed SD card (8GB)
|
| splashproof enclosure
| IP67 rated enclosure
|
| 2 status lights on unit (4 status light outputs on wiring loom)
| 0 status lights on unit (4 status light outputs on wiring loom)
|
The DL1 WP has the main 19 and 24 way connectors on the front of the unit, and the GPS connector on the rear of the unit. The unit orientation needs to be understood to set up the internal accelerometers:
Because there is no removable card on the DL1 WP, alll files are uploaded and downloaded from the unit using the Device Explorer software. For full details of this software click here.

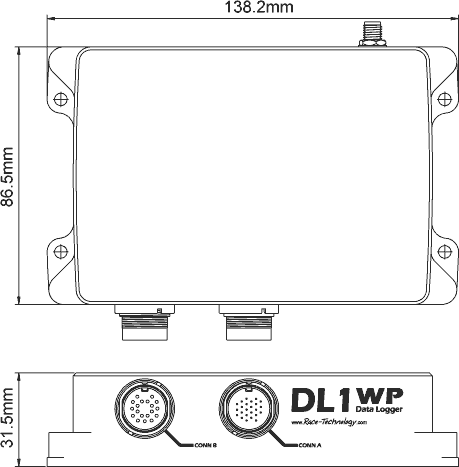

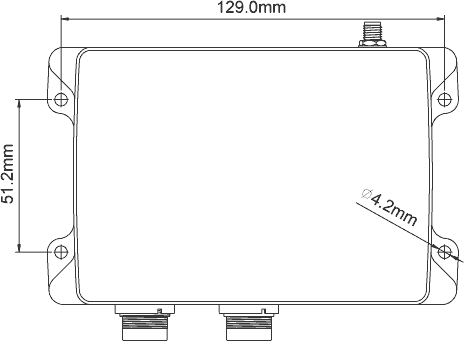

The external dimensions of the DL1 WP are as follows:
