ECUType / SCSDeltaGD14

SCS delta GD14

Supported ECU

GDi4
Delta 700s
Delta 900
GDi6

Connections

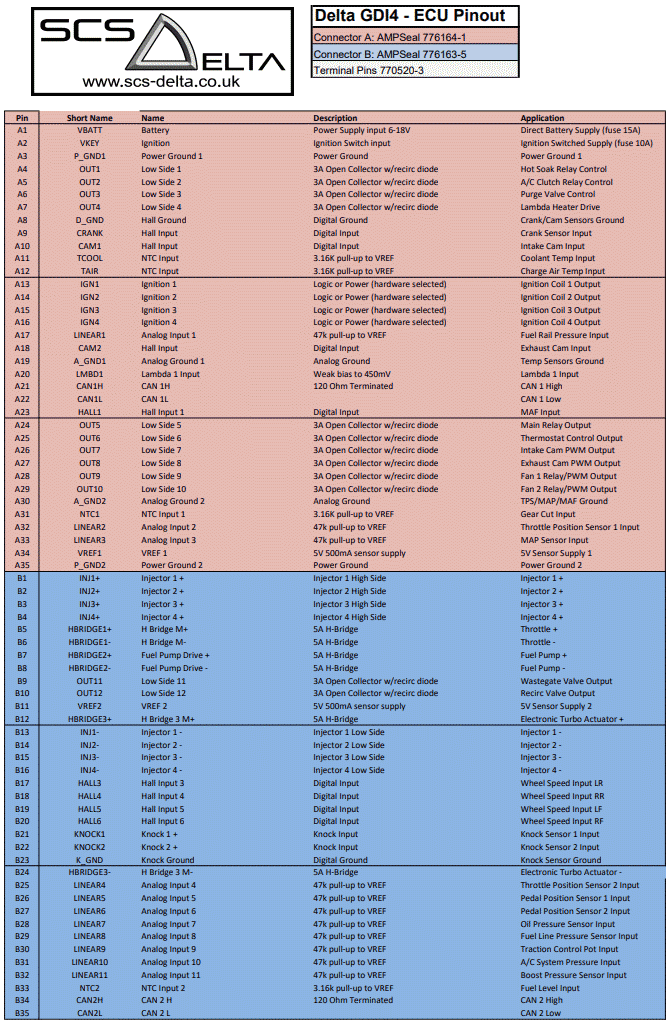

Delta GDI4

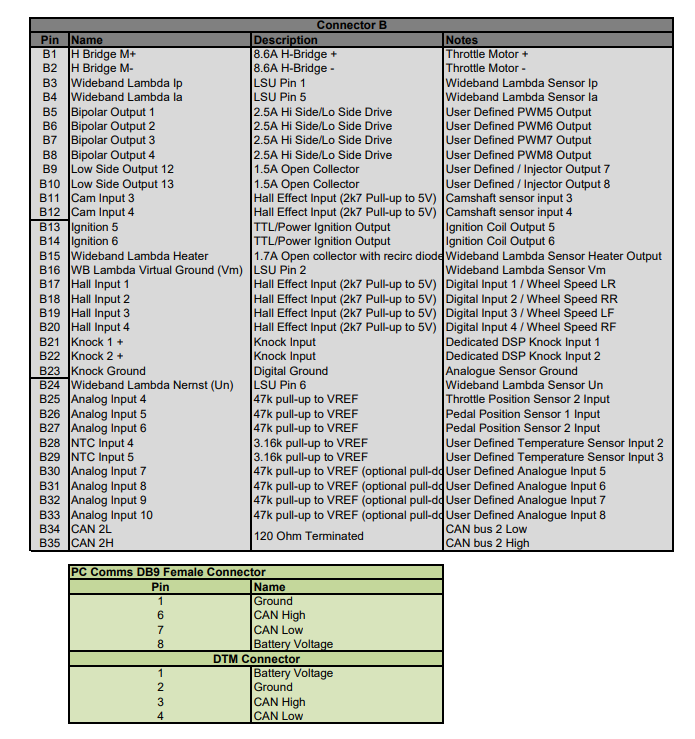

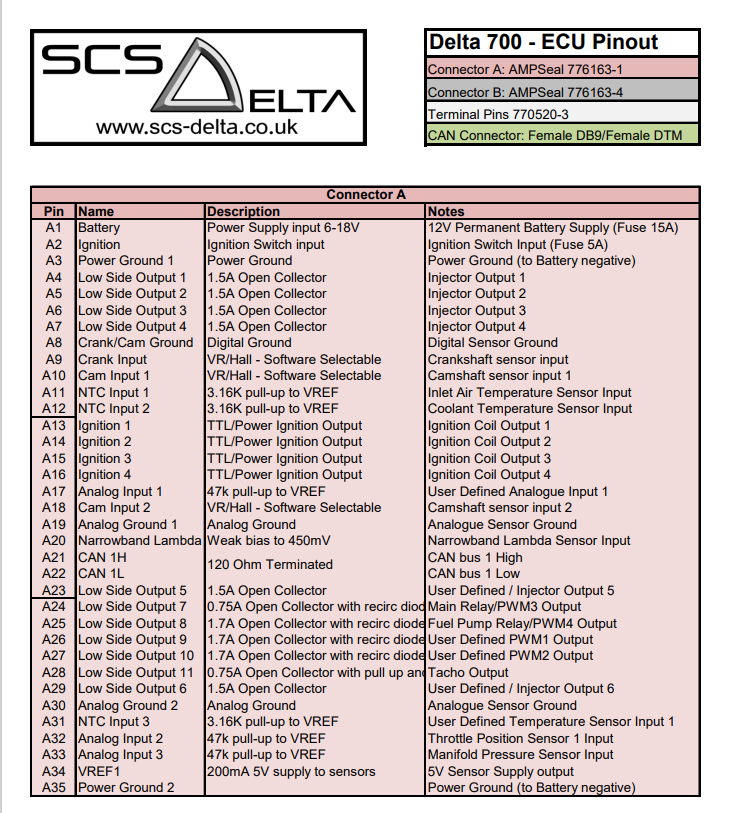

Delta 700

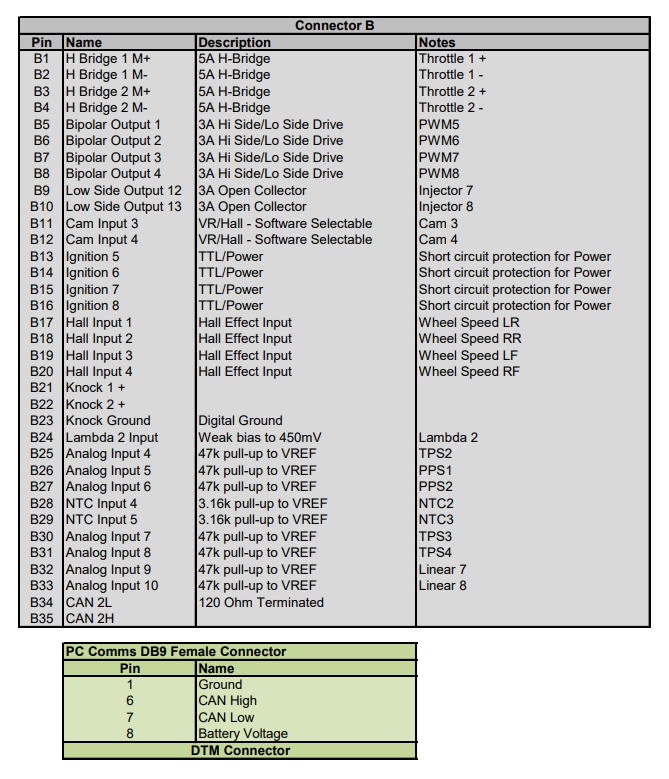

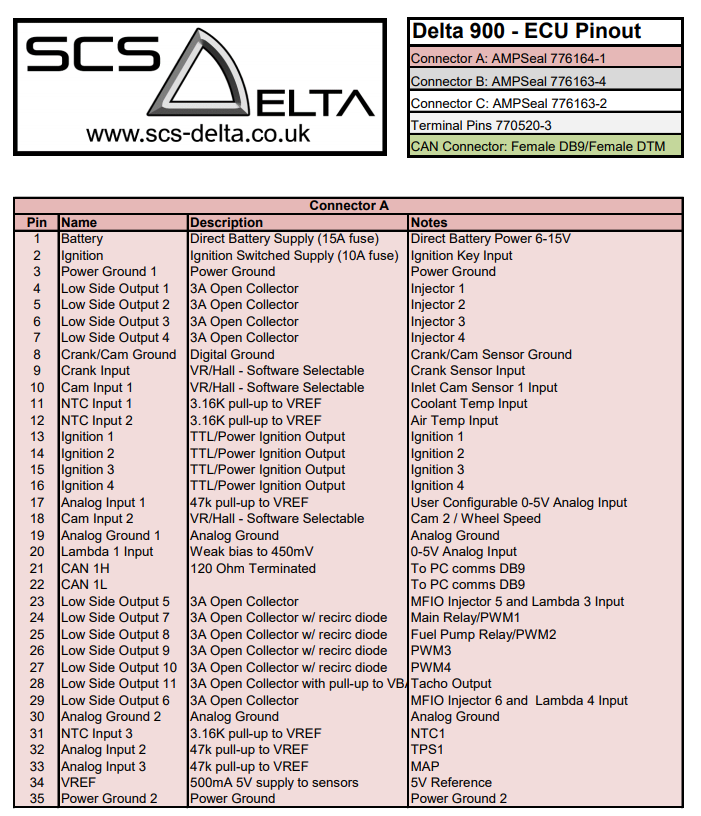

Delta 900

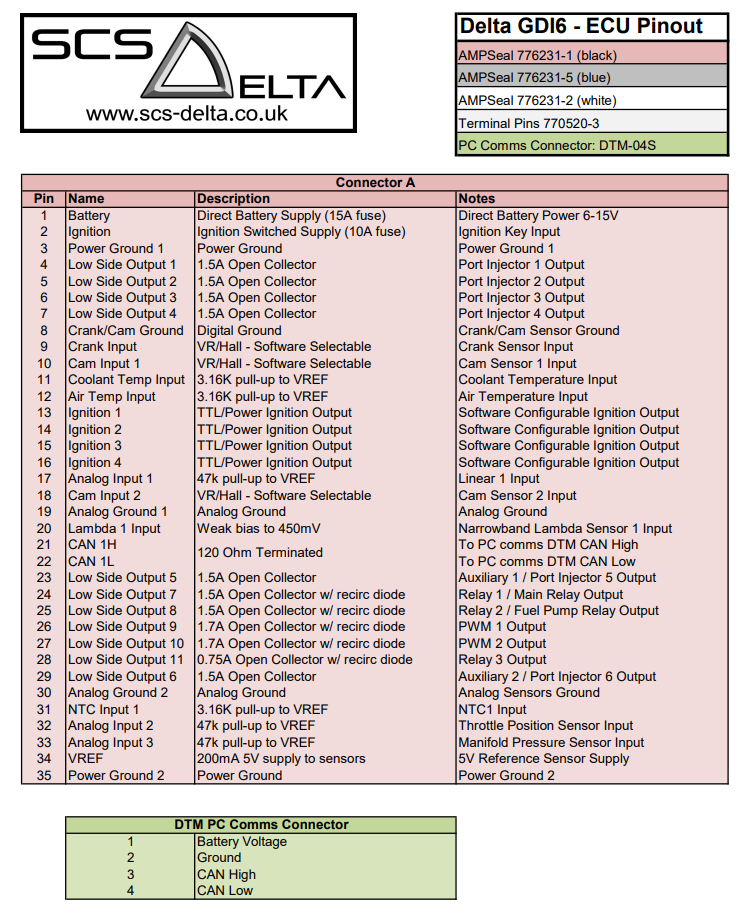

Delta GDI6

Race Technology connections

CAN interface connections
DASH2 PRO connections
DL1 mk3/club connections
DL1 PRO/WP connections
- Connect Race Technology CAN High to SCS delta CAN high
- Connect Race Technology CAN Low to SCS delta CAN low
Check CAN bus is terminated correctly.

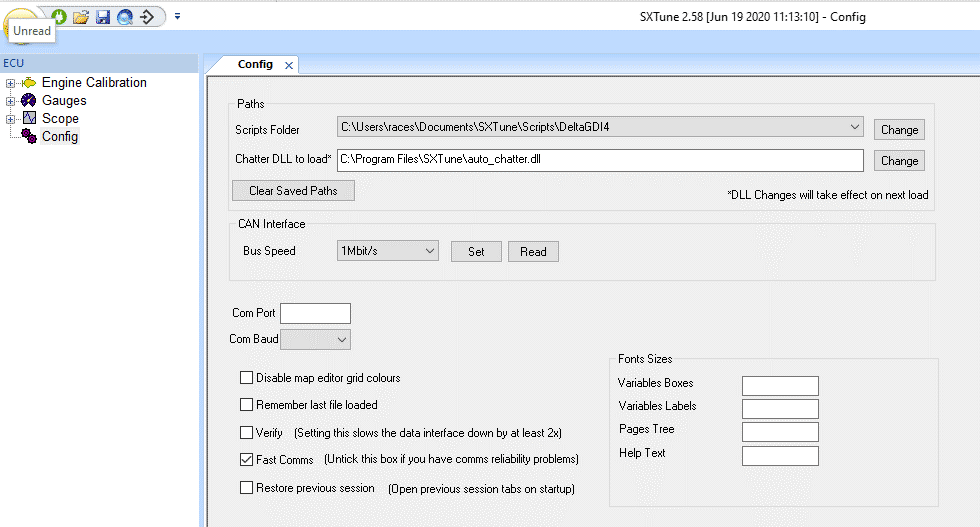

ECU setup

CAN bus speed must be set to 1Mbit/s. No other ECU configuration required.

Channel listing

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
QP_RPM	RPM	RPM	VAR_0010	1
QP_PPS	Aux 1	Throttle position	VAR_2000	0.40%
QP_TPS	Aux 2	Lambda 1 short trim	VAR_2001	0.40%
QP_ECT	temperature 8	coolant temp	VAR_1007	1C
QP_CAT_T_LAMP	Aux 4	Lambda 1 long trim	VAR_2003	-
QP_BRAKE_SW	Aux 5	Lambda 2 long trim	VAR_2004	on/off
QP_STEER_ANGLE	angle 3	Steering angle	VAR_3002	0.1 deg
QP_BRAKE_PRESS	Aux 30	Fuel aux temp comp	VAR_2029	0.3 bar
QP_GEAR	Aux 13	Fuel inj 8 PW	VAR_2012	-
QP_WH_SPD_RR	Aux 14	Fuel inj 1 cut	VAR_2013	0.1 km/h
QP_WH_SPD_RL	Aux 15	Fuel inj 2 cut	VAR_2014	0.1 km/h
QP_WH_SPD_FR	Aux 16	Fuel inj 3 cut	VAR_2015	0.1 km/h
QP_WH_SPD_FL	Aux 17	Fuel inj 4 cut	VAR_2016	0.1 km/h
