SIMTEK ECU
Compatibility:
All SIMTEK models with configurable CAN output functionality are compatible. Check with SIMTEK if you are unsure about your ECU’s compatibility.
Connections
- Connect Race Technology CAN+ to SIMTEK CAN+
- Connect Race Technology CAN- to SIMTEK CAN-
Ensure CAN bus is correctly terminated. Click here for more information.
Race Technology
- CAN interface connections
- DASH2 PRO connections
- DL1 mk3/club connections
- DL1 PRO/WP connections
SIMTEK Pin out information
SIMTEC ECU pin out information can be downloaded from their website http://www.simtek.co.uk/downloads/
ECU configuration:

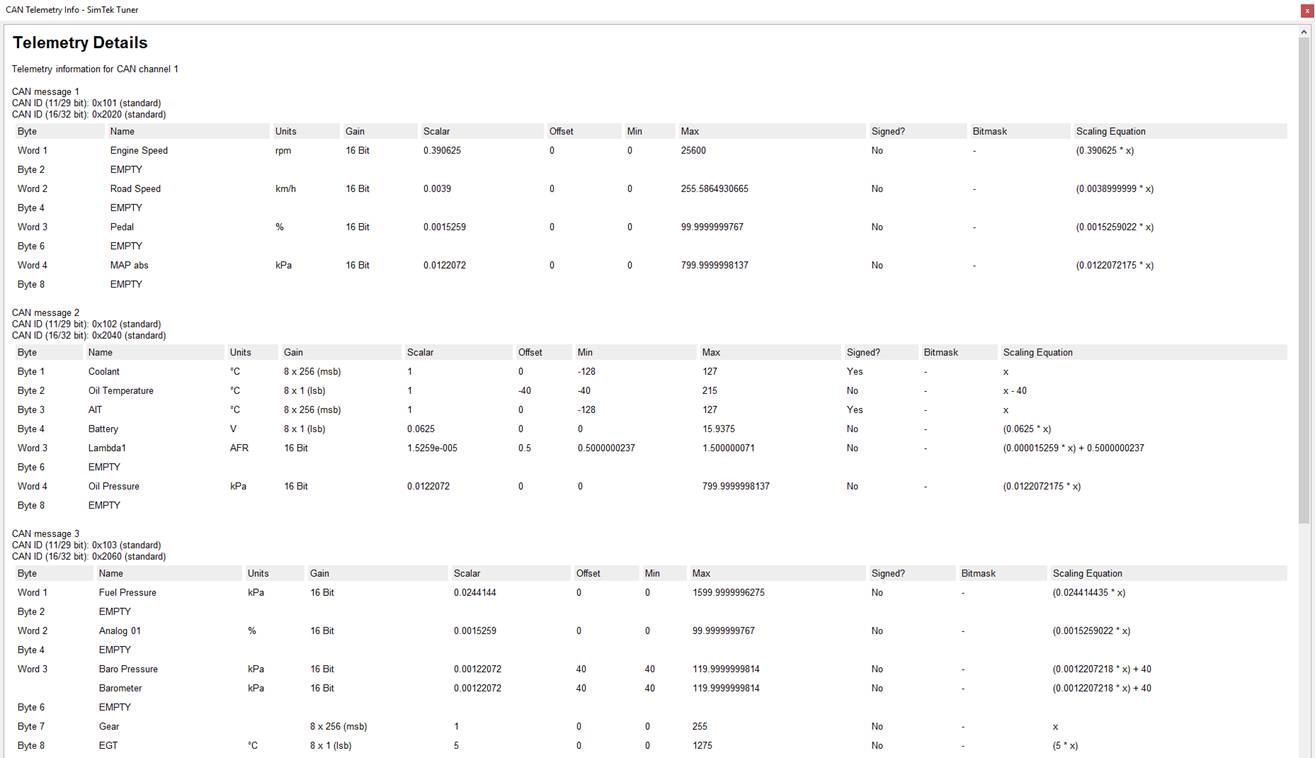

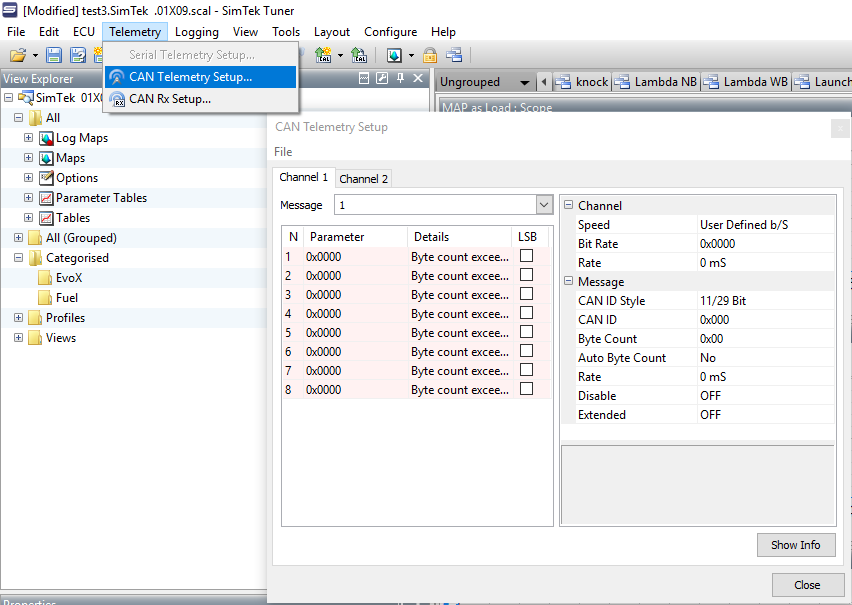

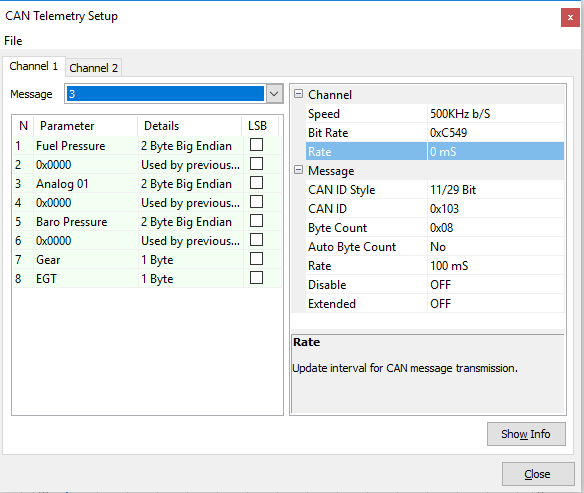

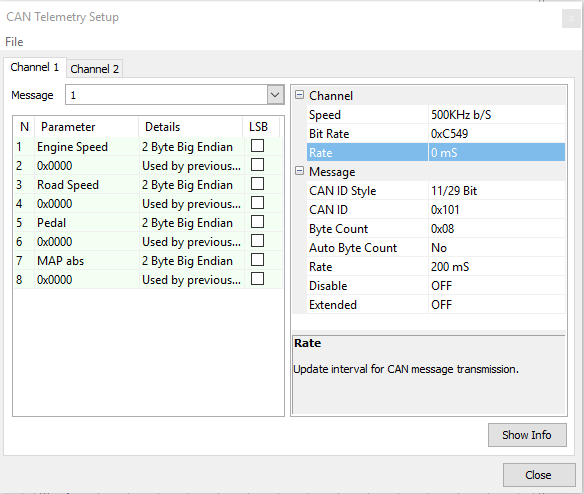

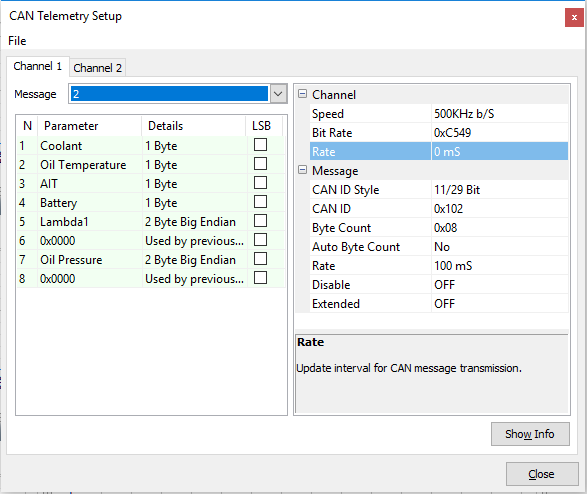

In the ECU’s CAN telemetry setup copy the settings below:
Channel listing
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| Engine speed
| frequency 1
| Engine speed (ECU)
| VAR_1500
| 1 RPM
|
| Road speed
| SPEED
| GPS vel RAW
| VAR_0414
| 0.01 km/h
|
| Pedal
| aux 1
| Throttle position
| VAR_2000
| 0.10%
|
| MAP abs
| pressure 5
| Boost pressure
| VAR_3504
| 1mb
|
| Coolant
| temperature 8
| Water temp
| VAR_1007
| 1c
|
| Oil temperature
| temperature 9
| Oil temp
| VAR_1008
| 1c
|
| AIT
| temperature 6
| Inlet post intercooler 1
| VAR_1005
| 1c
|
| Battery voltage
| misc 3
| Battery voltage
| VAR_4002
| 0.06v
|
| Lambda 1
| misc 1
| Lambda 1
| VAR_4000
| 0.001
|
| Oil pressure
| pressure 2
| Oil pressure
| VAR_3501
| 1mb
|
| Fuel pressure
| pressure 3
| Fuel pressure
| VAR_3502
| 1mb
|
| Analog #1
| analogue 1
| analogue 1
| VAR_0200
| 0.1v
|
| Baro pressure
| pressure 1
| Ambient air pressure
| VAR_3500
| 1mb
|
| Gear
| aux 2
| Lambda 1 short trim
| VAR_2001
| -
|
| EGT
| temperature 17
| Exhaust 1 temp
| VAR_1016
| 5c
|
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
