ECUType / KMSKTMXBow

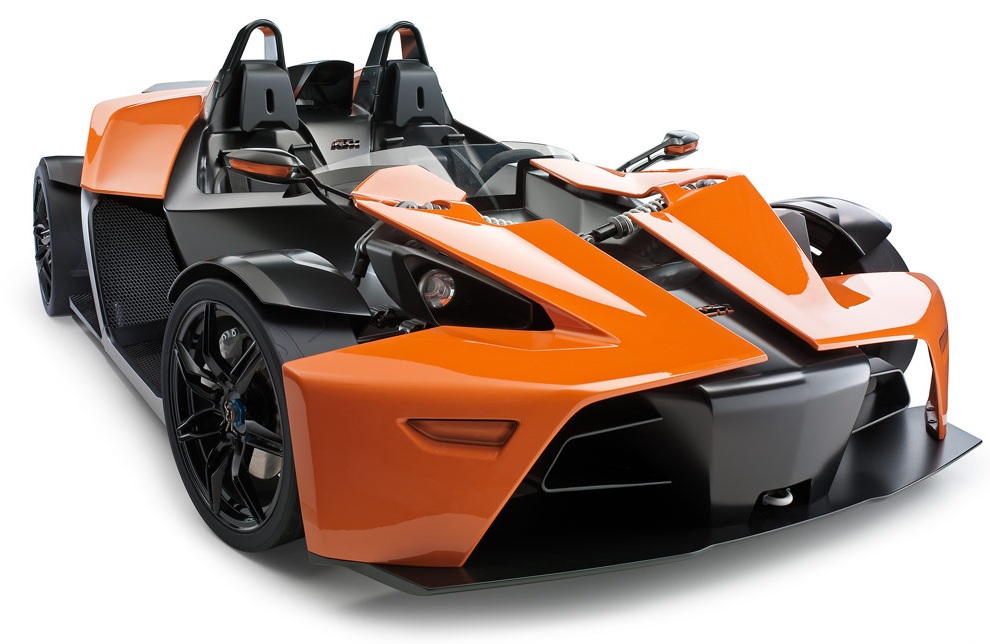

KTM x bow

Connections:

OBD connector

Pin 3 CAN HIGH
Pin 11 CAN LOW

No ECU setup needed.

Channel Listing:

Name	Race Technology Channel	Resolution
RPM	Engine RPM (RPM)	0.25 RPM
Water Temperature	temperature 8 (Water temp)	0.75 ^oC
Oil temperature	temperature 9 (Oil temp)	1 c ^oC
Throttle position	aux 1 (Throttle position)	0.40%
Air temperature	temperature 1 (Ambient Air Temperature)	0.75 ^oC
