How do I re-flash my DASH2 PRO?

By re-flashing your DASH2 PRO, the latest software will be installed onto it. Typically, this is only required when requested by the factory to address an issue in the firmware. Note there is a small risk when re-flashing the DASH2 PRO that you will corrupt the unit. We would recommend that you don't re-flash the unit unless it is required.

If you are re-flashing the unit:

  • Please contact Race Technology and follow the instructions provided; then this will be covered within the standard warranty.
  • Then you will get a reflash authorisation code which is valid for two weeks.

To start reflashing:

Step 1: Apply power to the DASH2 PRO.

Step 2: connect your DASH2 PRO to your PC using a USB cable.

Step 3: Start up the DASH2 PRO configuration software, in the communications section at the bottom of the main screen select the correct serial port for the USB connection to the DASH2 PRO. Then select File / Reflash DASH2 PRO Firmware. The following screen appears:

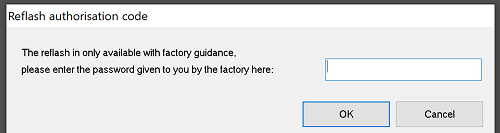

Enter the reflash auth code to proceed to the reflash dialog.

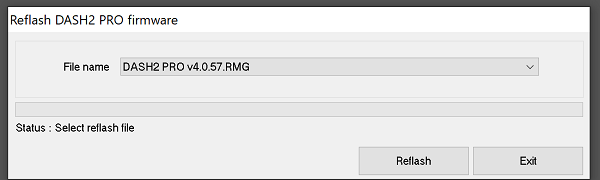

Select the Reflash file from the drop down box.

Step 4: Click on Reflash and the reflash should start.
