ECUType / KMSMD35-CAN

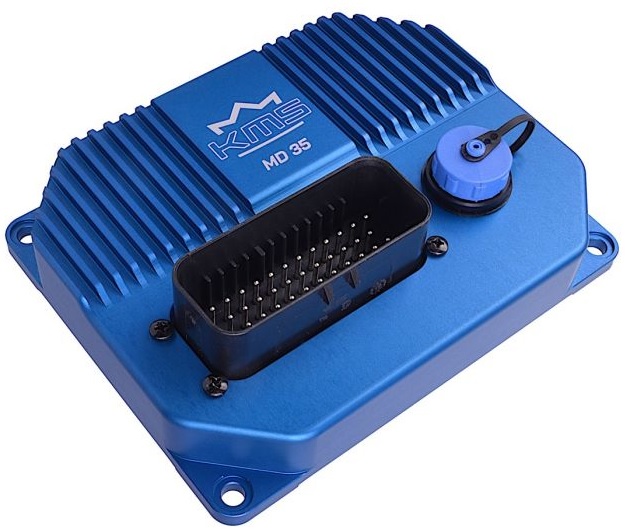

KMS MD35 (CAN)

Notes:
It only works with ECUs with version numbers ending in C. If the version numbers ends in A then the ECU is compatible with a serial interface.

Connections:

CAN High: Pin 1 of the MD35 connector
CAN Low: Pin 2 of the MD35 connector

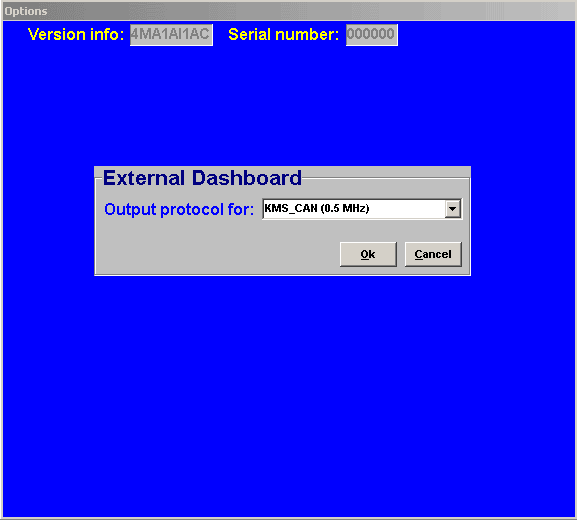

ECU external DASHboard needs setting to KMS_CAN (0.5 MHz):

Channel listing:

Name	Race Technology Channel	Resolution
RPM	Engine RPM (RPM)	10 RPM
Water temp	temperature 8 (Water temp)	1^oC
Air temp	temperature 1 (Ambient Air Temperature)	1^oC
Boost pressure	pressure 5 (boost pressure)	0.1 kPa
Oil pressure	pressure 2 (Oil pressure)	0.1 kPa
Throttle position	aux 1 (Throttle position)	0.1 (0-16)
Battery voltage	misc 3 (Battery voltage)	0.25V
Lambda 1	misc 1 (Lambda 1)	0.005 lambda
Lambda 2	misc 2 (Lambda 2)	0.1 lambda
Ambient air pressure	pressure 1 (Ambient air pressure)	0.1 kPa
Selected gear	aux 26 (Auxiliary 1)	1
rpm limiters and overrun	aux 27 (Auxiliary 2)	1
