How do I get team access?

Contact the race series and supply email address and password. The race series will grant access to the team using the cloud remotely

Note: Race series charges may apply. All data will be available to download and live data service can be accessed in web browser.

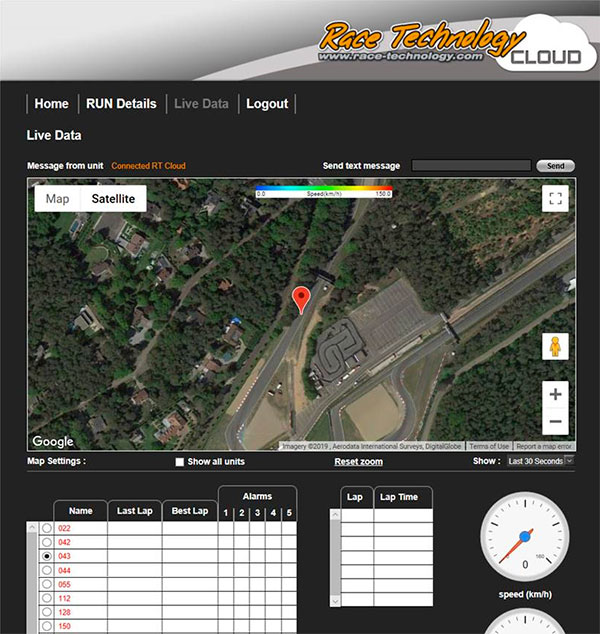

Web Browser Access

Web browser access allows quick access on any device using a web browser including mobile phone.

Full Data Access

Full data access requires Race Technology V10 software to be installed and is only available using PC running windows 10.
Latest version available here:

IMPORTANT: Once software is installed is it important to load variable information and login to cloud account

Load variable file

– Variable file contains channels naming, equation and filtering.

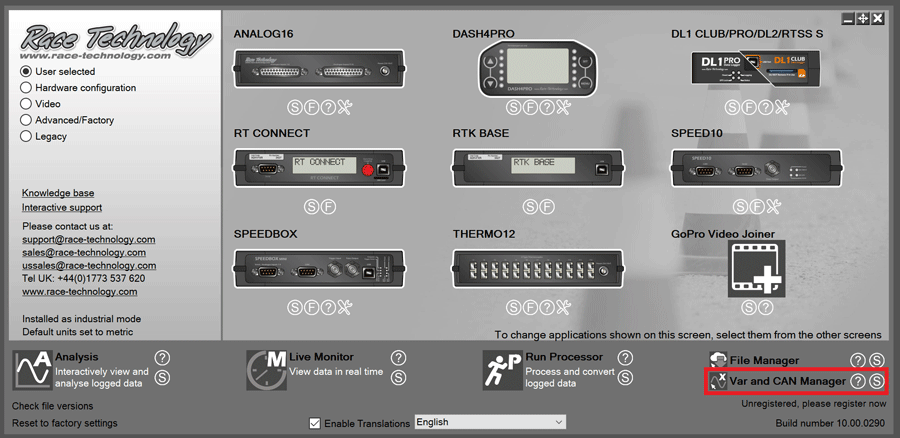

Open var and CAN manager

Click to enlarge

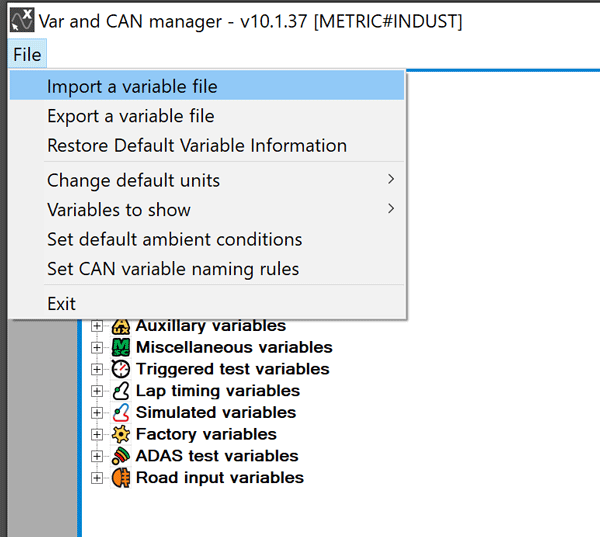

Select File> Import a variable file

Click to enlarge

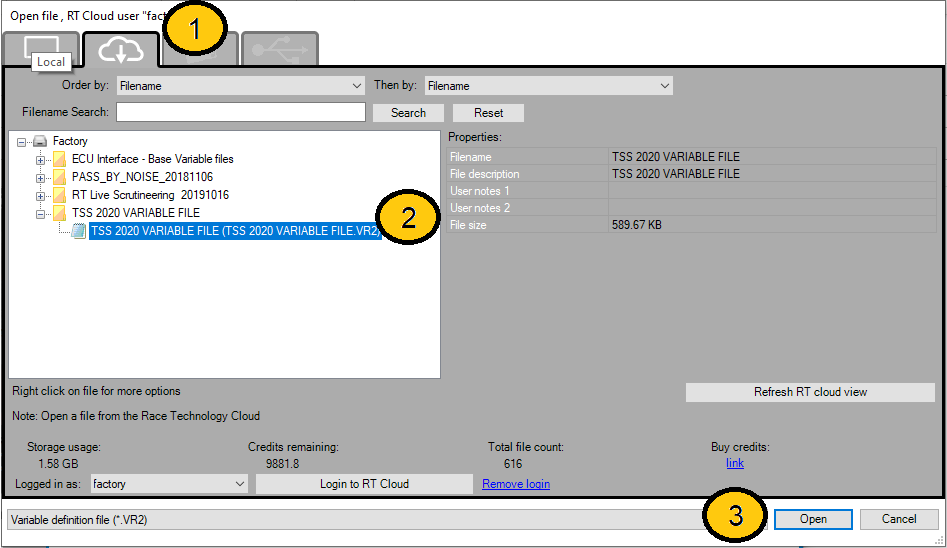

Select variable file from cloud area:

Click to enlarge

Live telemetry data

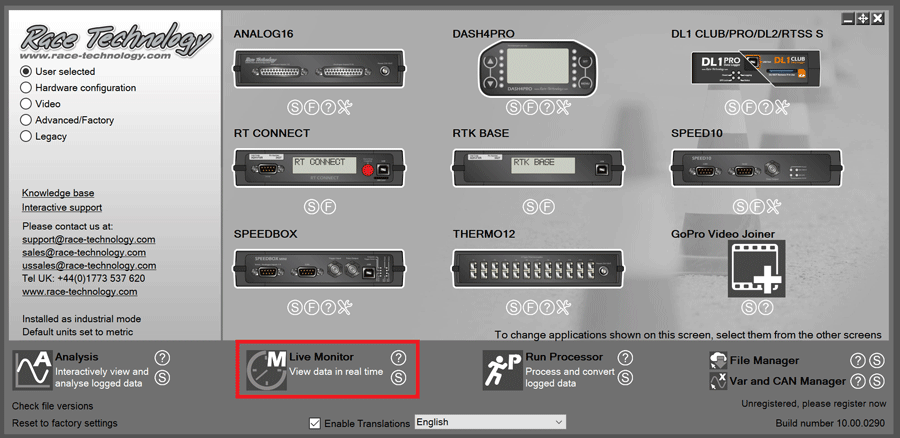

Open ‘Live Monitor’ software

Click to enlarge

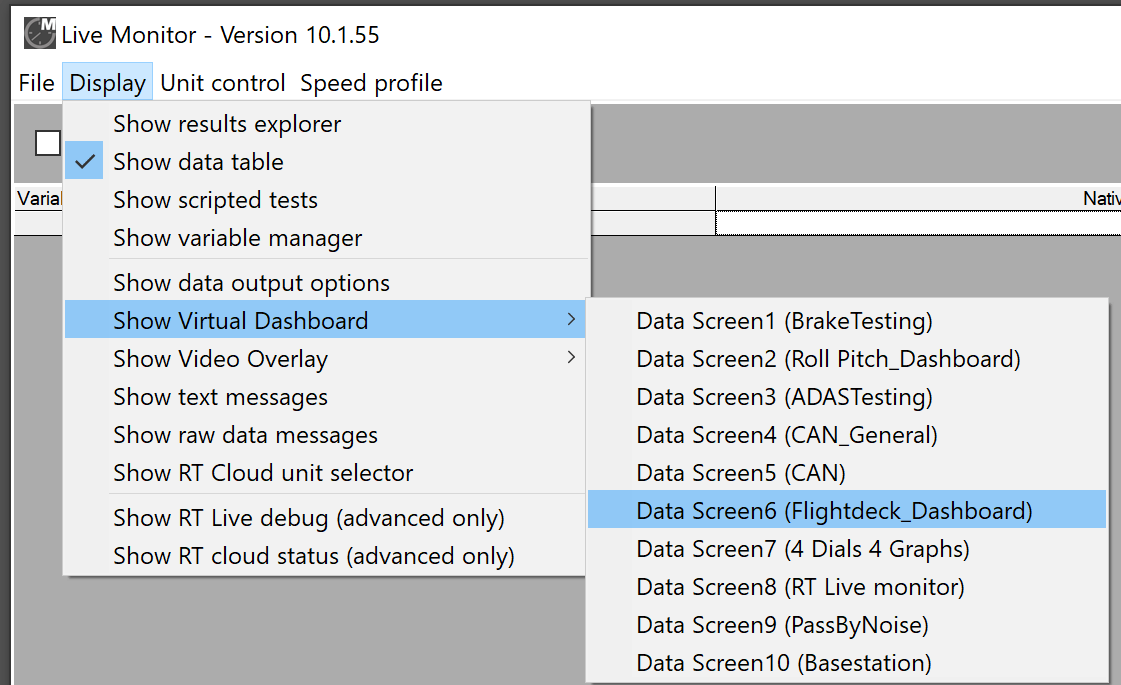

Load a suitable virtual dashboard from the list of dashboards:

Click to enlarge

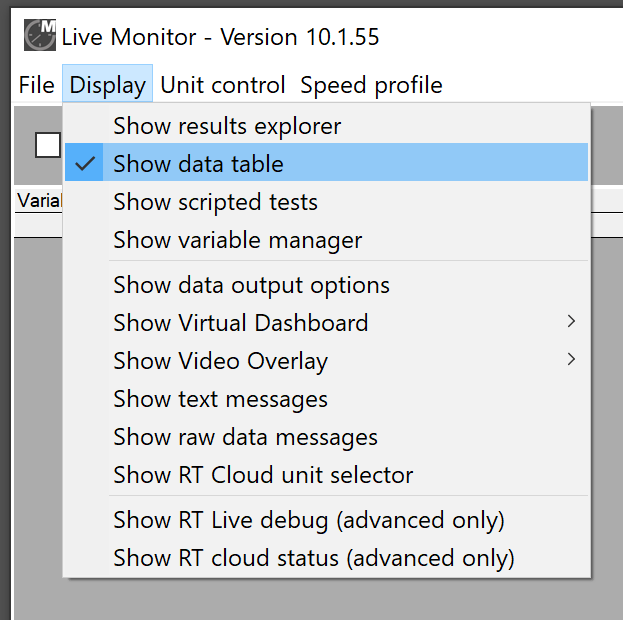

Select only to show the data table:

Click to enlarge

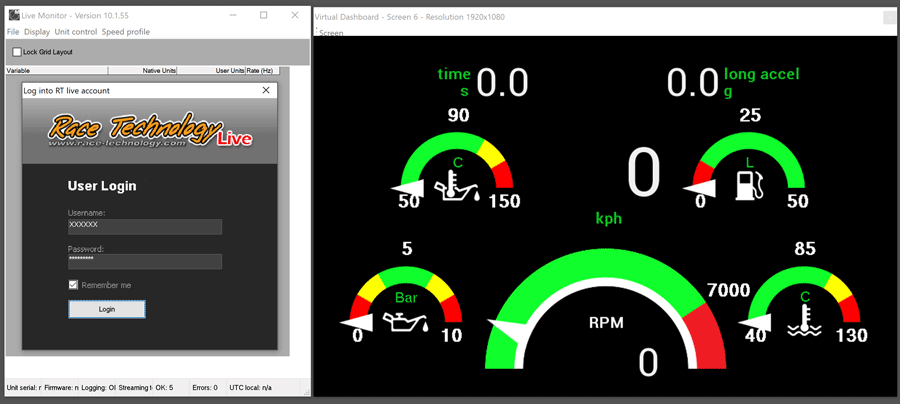

Log on to unit

Click to enlarge

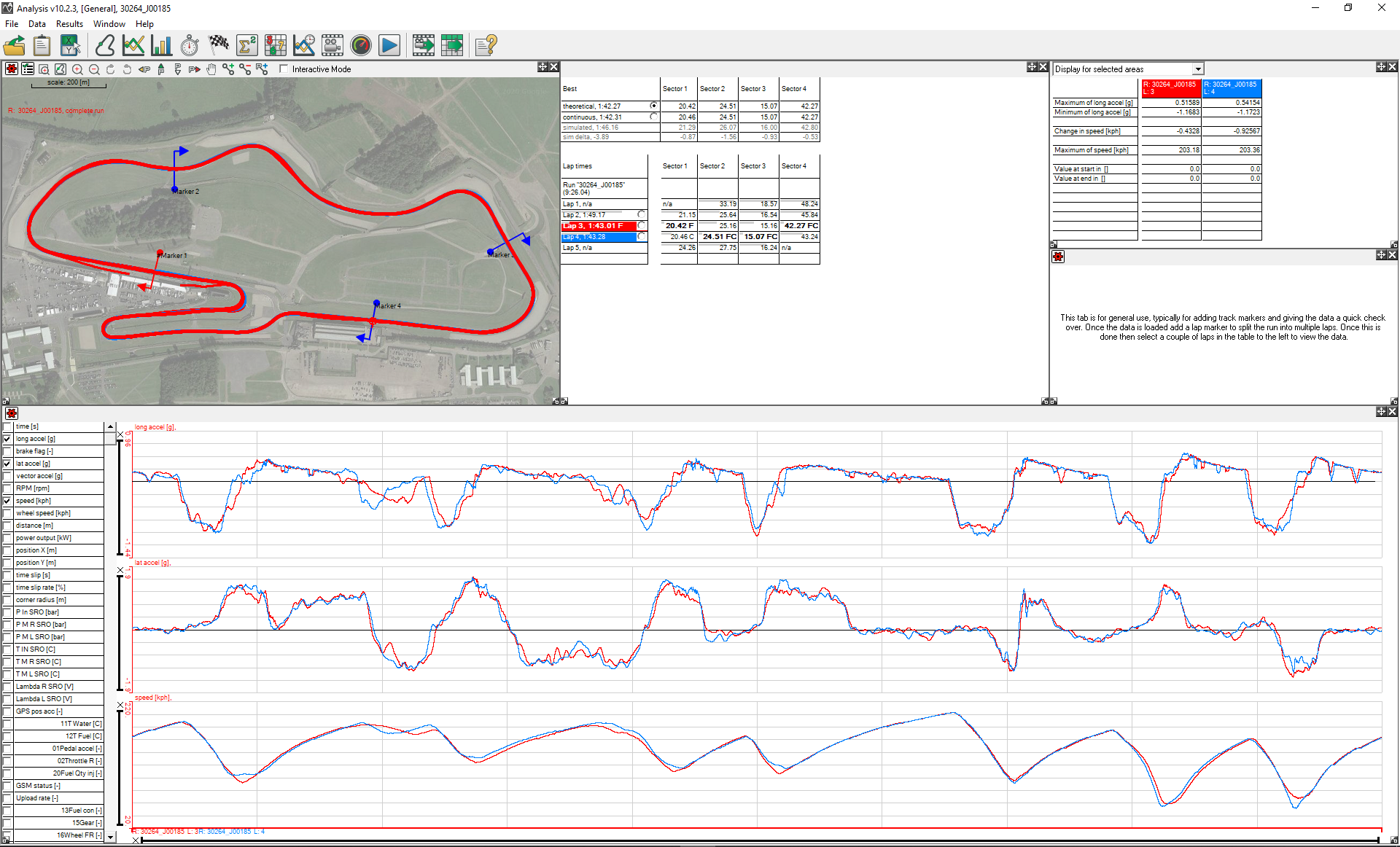

Full data analysis

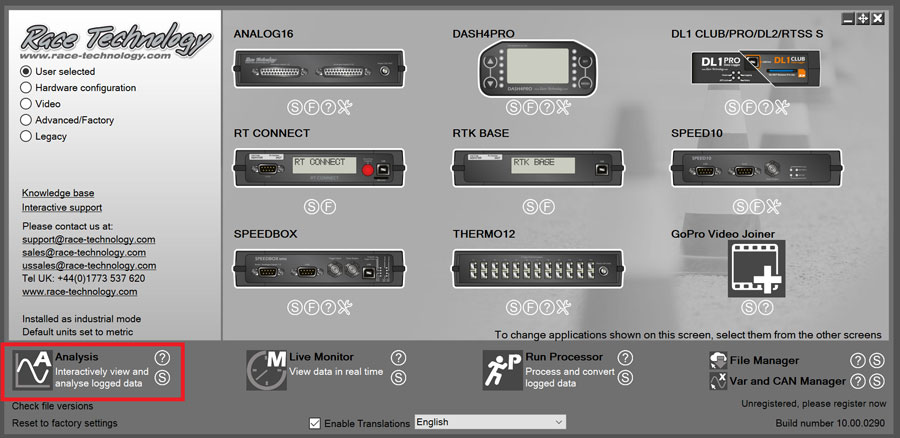

Open Analysis software

Click to enlarge

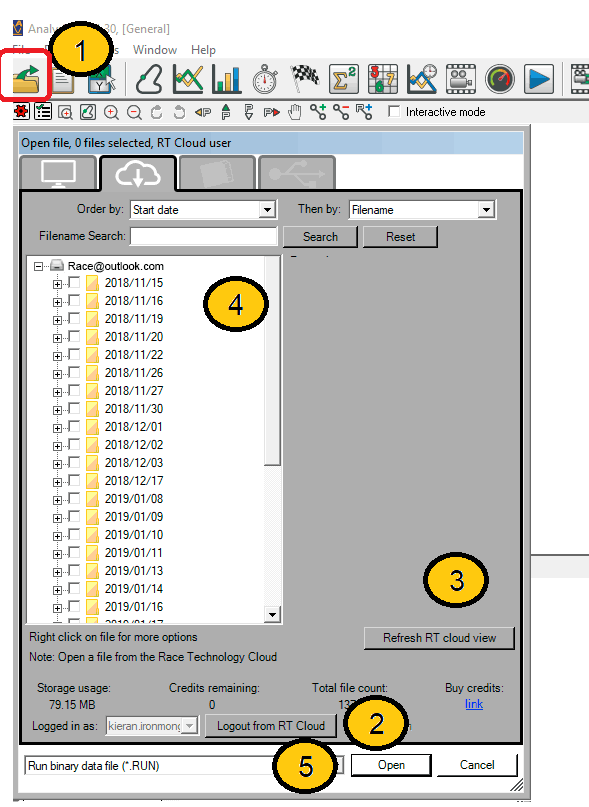

  1. Click load data
  2. Login into cloud if required
  3. Refresh if required
  4. Select file (possible to load file whilst car still on circuit)
  5. Click open

Analysis beginner guide:

Click to enlarge
