RTLIVE / HowDoIConnectToAiMDevice

How do I connect to AiM device?


Compatibility

  • AiM Dash Loggers: MyChron4, MyChron5, MXG, MXL, MXL Pista, MXL Pro05, MXL Strada, MXL2, MXS and SoloDL
  • AiM Data Loggers: EVO3 Pista, EVO3 Pro, EVO4, EVO4S and EVO5
  • AiM Bridges: ECU Bridge


AiM Device Setup

In most cases, the AiM device will be already correctly configured, if it is not working correctly, then please follow the steps below:

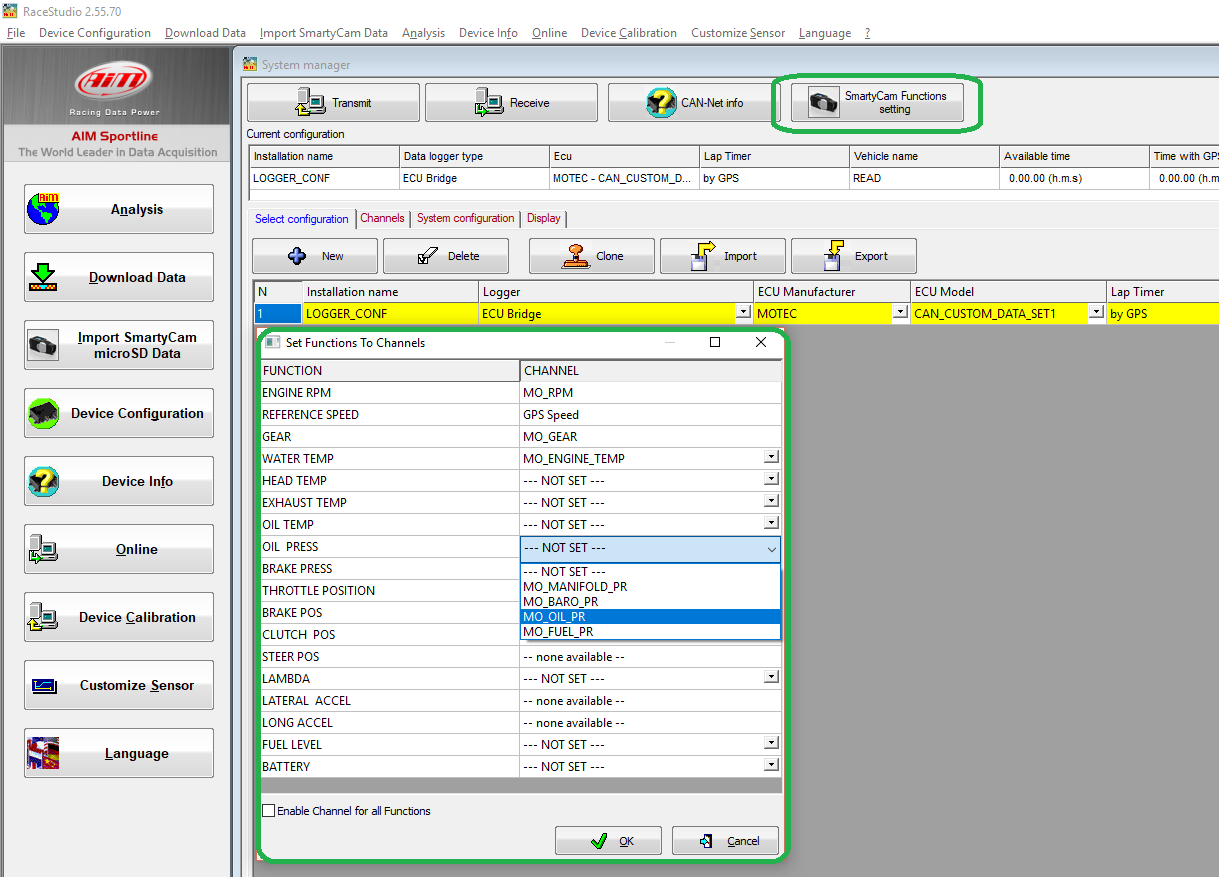

  1. Connect the compatible AiM device to a PC and depending on the product, open either AiM software program RaceStudio2 or RaceStudio3.
  2. Ensure the correct vehicle is selected and then click on the 'SmartyCam Stream' tab. This will list all of the standard SmartyCam channels that are transmitted from the AiM device alongside vehicle specific CAN channels which are chosen by the software to match these standard channels.
  3. Enable all channels available to the AiM from the connected ECU
  4. ‘Transmit’ to save the configuration to the AiM device.


Connections

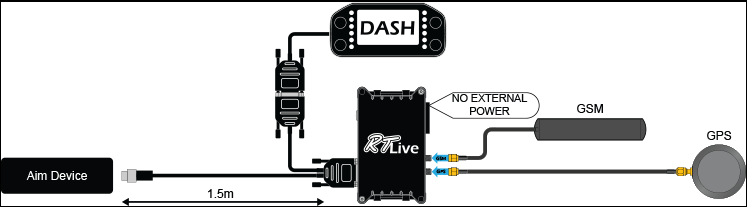

RTLive – Using cable Part: RTLVAiM_1.5M
*** RTLive will be powered via the AiM device and no external power to the RTLive is needed.

DL1 (Club/Pro/WP) / DL2 / DASH2 pro – Using cable Part: CANAiM_1.5M


Channel listings

Available channels will vary depending on ECU connected to AiM device.

ECU Name Race Technology message Race Technology Default name Race Technology VAR number Resolution
Engine RPM frequency 1 Engine speed (ECU) VAR_1500 1 RPM
Ref speed aux 2 Lambda 1 short trim VAR_2001 0.1 KPH
Gear aux 3 Lambda 2 short trim VAR_2002 -
Water temp temperature 8 Water temp VAR_1007 0.1c
Head temp temperature 25 Aux 1 VAR_1024 0.1c
Exhaust EGT temperature 17 Exhaust 1 temp VAR_1016 0.1c
Oil Temp temperature 9 Oil temp VAR_1008 0.1c
Oil Press pressure 2 Oil pressure VAR_3501 1mb
Brake Press pressure 4 Water pressure VAR_3503 1mb
ThrottlePosTPS aux 1 Throttle position VAR_2000 0.10%
Brake Pos aux 4 Lambda 1 long trim VAR_2003 0.10%
Steer Pos angle 3 Steering angle VAR_3002 0.1 degree
Lambda misc 1 Lambda 1 VAR_4000 0.1 lambda
Fuel level aux 5 Lambda 2 long trim VAR_2004 0.1 g
Battery misc 3 Battery voltage VAR_4002 1mv
Clutch Pos aux 6 Fuel inj 1 PW VAR_2005 0.1 g
Lat acc aux 7 Fuel inj 2 PW VAR_2006 0.10%
Long acc aux 8 Fuel inj 3 PW VAR_2007 0.10%
