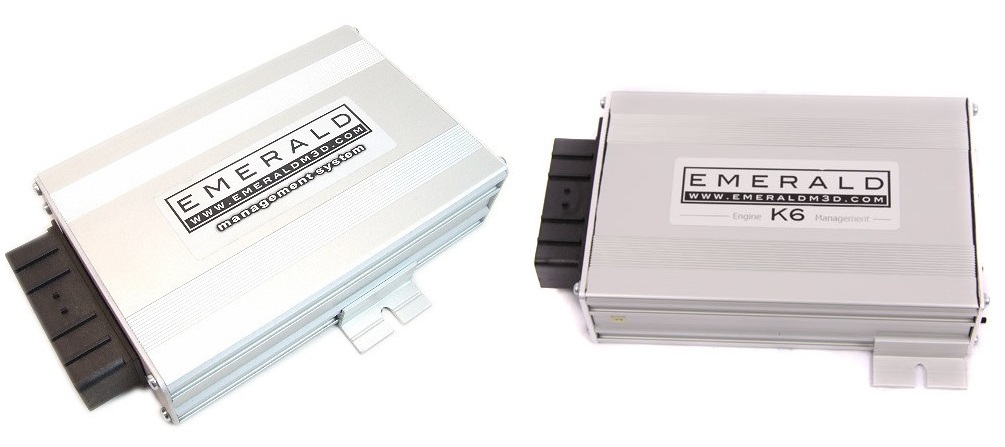

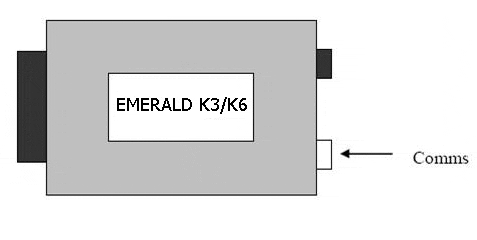

IMPORTANT: please note that Emerald uses non standard pins for CAN on their D type. Emerald uses pins 1 and 2, whilst our CAN adapter uses the standard pins 2 and 7. To connector our CAN adapter to the Emerald ECU the options are:

  • Open out d type connector and change the pins on our d-type
  • Do no use our d type to plug directly to the ECU, but instead use the also supplied d type to fly-leads adapter
  • Use an adapter to swap from the emerald pins to the standard locations


Pin Number Connection Comments
1 CAN_H CAN bus interface
2 CAN_L CAN bus interface
3 - Not used
4 - Not used
5 earth Signal earth
6 - Not Used
7 Rx RS232 serial interface, data receive
8 Tx RS232 serial interface, data transmit
9 CTS RS232 serial interface, clear to send

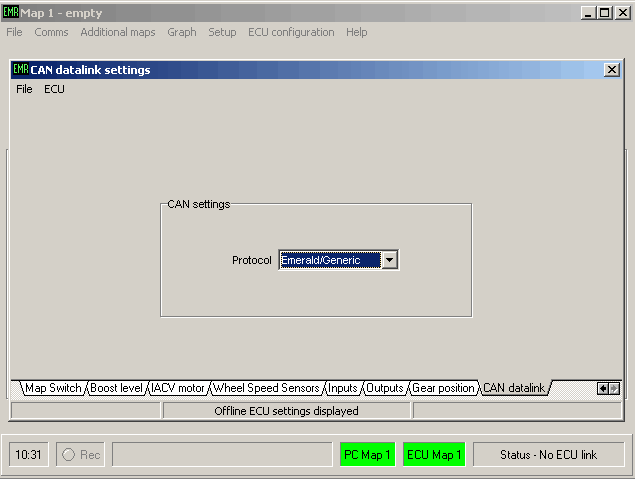

ECU Settings:

This generic protocol can be enabled on Emerald K3 ECU’s that have a firmware version v1.05 or higher.

Channel Listing:

ECU Name Race Technology message Race Technology Default name Race Technology VAR number Resolution
RPM Engine RPM RPM VAR_0010 1 RPM
MAP pressure 5 Boost pressure VAR_3504 0.1 kPa
BARO pressure 1 Ambient air pressure VAR_3500 0.1 kPa
TPS% aux 1 Throttle position VAR_2000 1%
Coil on-time measured time 9 Coil 1 PW VAR_2508 1 ms
Coolant temp temperature 8 Water temp VAR_1007 1 oC
Road speed frequency 2 EGR freq VAR_1501 0.1 MPH
AFR/Lambda_1 misc 1 Lambda 1 VAR_4000 0.1 lambda
AFR/Lambda_2 misc 2 Lambda 2 VAR_4001 0.1 lambda
Status flags aux 26 Auxiliary 1 VAR_2025 1
Error flags aux 27 Auxiliary 2 VAR_2026 1
Injector duration measured time 1 Fuel inj 1 PW on VAR_2500 1 ms
Gear aux 28 Auxiliary 3 VAR_2027 1
Selected map aux 29 Auxiliary 4 VAR_2028 1
Battery misc 3 Battery voltage VAR_4002 0.01V

Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
