ECU and DASH display

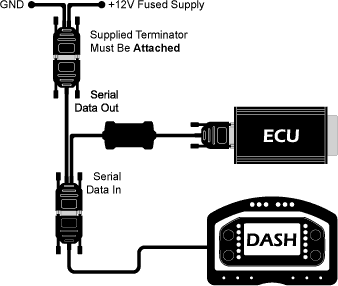

IMPORTANT:

For making a connection to an ECU, it's not always possible to plug in the ECU adapter directly to the ECU as not all ECU providers use standard pin outs on their connectors. Please refer to the ECU manufacturers documentation and our installation information. In particular, for CAN it is preferred to use the supplied d-type to fly lead adapter to connect the ECU's loom.
