RTUnitConfigurations / VIDEO4ConfigForDL1

Configuring the VIDEO4 for use with a DL1


When using VIDEO4 with only a DL1, or a DL1 and ECU interface, but no DASH, all Serial Outputs must be disabled. This can be done using the "Data Configuration" dialog in the VIDEO4 Configuration Tool.


1.Open the VIDEO4 Configuration tool.

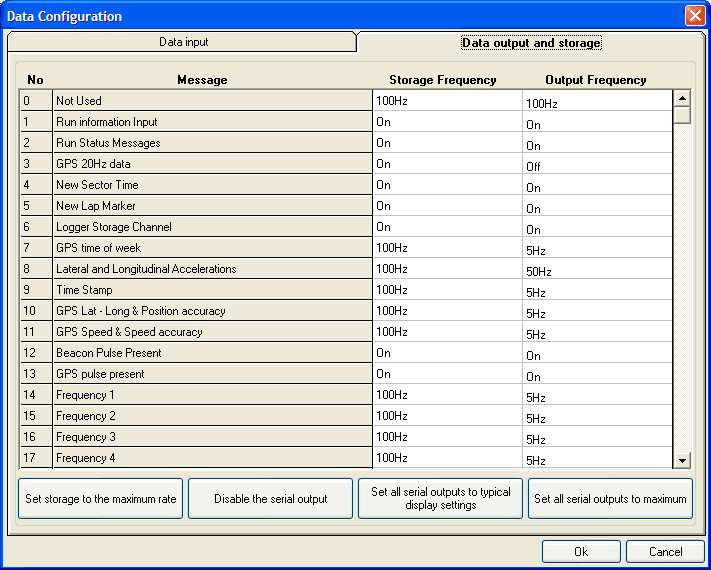

2.Click on the menu item "Configuration” -> “Data Configuration" to open the "Data Configuration" dialog and select the "Data output and storage" tab.

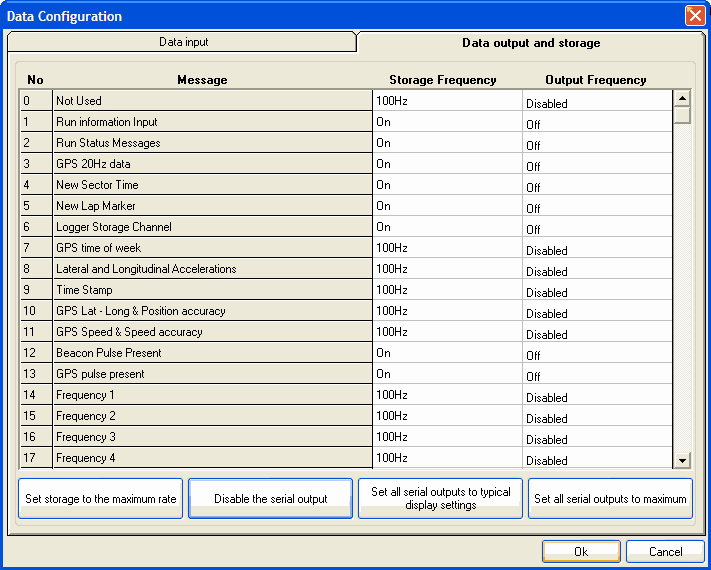

4. Click on the button Disable the serial outputs and press OK to save the settings and exit from the dialog.
