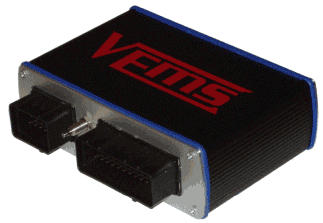

VEMS V3
ECU configuration
No ECU configuration required.
Connections
- ECU EC18 pin15 is Tx
- ECU EC18 pin14 is Rx
The ECU has standard wiring to the DSUB9 connector, which allows our ECU Interface to be plugged in directly i.e. 'ECU' labelled connector connects directly into the DSUB9 connector built into the ECU casing.
Alternatively connections can be made via a null modem cable with two male DSUB9 connectors, this would be used only when the 'built in ECU Interface' license has been purchased with your Race Technology product.
Channel naming
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| RPM
| Engine RPM
| RPM
| VAR_0010
| 1 rpm
|
| Wheel Speed
| aux 26
| Auxiliary 1
| VAR_2025
| 0.1Km/h
|
| Oil Pressure
| pressure 2
| Oil pressure
| VAR_3501
| 1mb
|
| Oil temp
| temperature 9
| Oil temp
| VAR_1008
| 0.1c
|
| Water Temp
| temperature 8
| Water temp
| VAR_1007
| 0.1c
|
| Fuel Pressure
| pressure 3
| Fuel pressure
| VAR_3502
| 1mb
|
| Battery Voltage
| misc 3
| Battery voltage
| VAR_4002
| 0.01v
|
| Throttle Angle
| angle 1
| Throttle angle
| VAR_3000
| 0.1 degrees
|
| Manifold Press
| pressure 5
| Boost pressure
| VAR_3504
| 1mb
|
| Air charge temp
| temperature 6
| Inlet post intercooler 1
| VAR_1005
| 0.1c
|
| Exhaust temp
| temperature 17
| Exhaust 1 temp
| VAR_1016
| 0.1c
|
| Lambda Sensor
| misc 1
| Lambda 1
| VAR_4000
| 0.001 lambda
|
| Fuel Temp
| temperature 25
| Aux 1
| VAR_1024
| 0.1c
|
| Gear
| aux 27
| Auxiliary 2
| VAR_2026
| 1
|
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
