Configuring for use with DL1 Mk1/Mk2/Sport

When using the AnalogModule8 with Mk1/Mk2/Sport versions of the DL1 Logger where the analogue inputs are set as a fixed channel, the AnalogModule8 must be configured to ensure that the same channel names are not used.

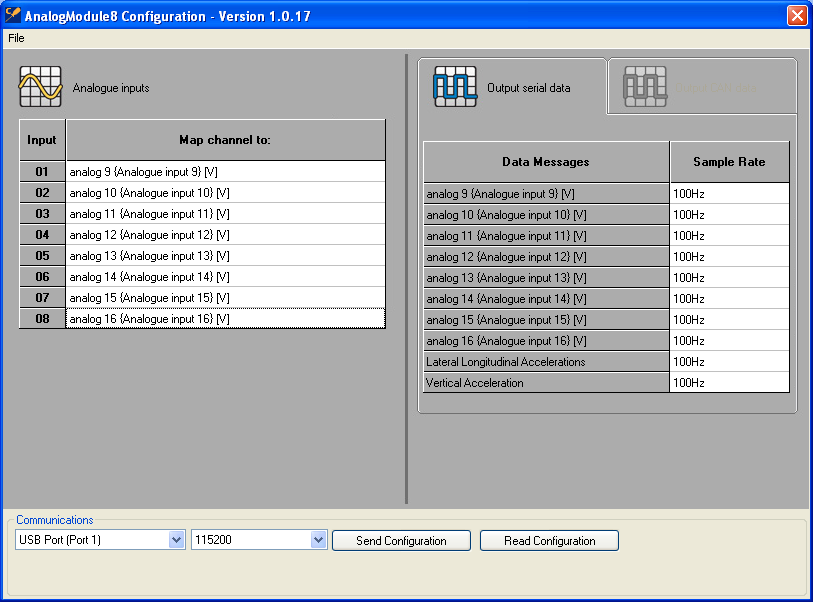

Analogue inputs on these units are set to Analogue 1 to Analogue 8 respective of the input number on the logger. If one of these loggers were to be used with one AnalogModule8, the module configuration should be set as per the below image.
