SPEED10 / Specification
| GENERAL
|
| Power requirements
| +10-36v
|
| Power consumption
| 0.4W
|
| Case construction
| Die-cast aluminium
|

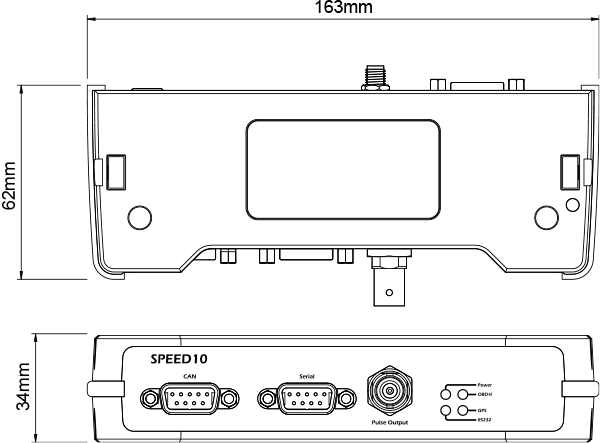

| Dimensions
| 163x62x34mm
|
| Mass
| 295g
|
| IP rating
| IP50
|
| Operating temperature
| -40 to 70 degrees C
|
| Humidity
| 5 to 95% non-condensing
|
| Fixing method
| Fixing links to other Race Technology products or mount with brackets/Velcro
|
| Outputs
| RS232,CAN, Pulse
|
|
|
| DATA ACCURACY
|
| Speed accuracy
| < 0.05m/s 50% of the time at 30m/s
|
| Position accuracy
| 2.5m CEP 50% of the time
|
|
|
| CAN
|
| Maximum baud rate
| 1Mb/s
|
| Data rate
| 10Hz for GNSS data, vehicle dependant for OBD-II data
|
| Identifiers
| Configurable addresses, 11 or 29 bit
|
| Termination
| None. Must be terminated externally.
|
|
|
| GNSS
|
| Constellations
| GPS and GLONASS including QZSS and SBAS, Galileo and Beidou upon request
|
|
|
| RS232
|
| Baud rate
| 115200 baud
|
| Data rate
| 10Hz for GNSS data, vehicle dependant for OBD-II data
|
| Data format
| Race Technology standard GPS, temperature, pressure channels
|
|
|
| PULSE OUTPUT
|
| Maximum pulse rate
| >20kHz
|
| Output format
| 50% duty cycle square wave
|
| Voltage
| 0-5v
|
|
|
| Order codes
|
| SPEED10 main system
| SPEED10
|
| Optional OBD-II interface
| OBDIISPEED10
|
CAN output messages:
Format details for the CAN messages can be found on the following links.
SPEED
LLH1
LLH2
Heading
GPS Status
Pressure messages
Temperature messages
Engine speed
Auxiliary messages
Angle messages
RS232 output messages:
GPS positional data
Speed data
Course data
Pressure messages
Temperature messages
Engine speed
Auxiliary messages
Angle messages
