DL1MK3Configuration / Gyro

<< Previous, Unit control inputs

Gyro

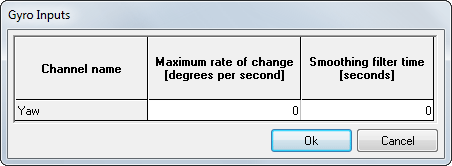

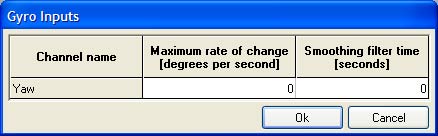

The internal gyroscope on the DL1 CLUB can be used for slip angle measurement. If present the gyro will operate automatically. By clicking on the Gyro inputs icon on the main configuration screen you can set the filtering parameters for the gyro. A maximum rate of change and a time to smooth over can be set:


When using the internal gyroscope, the variable mapping option must be set up to take yaw rate data from the internal sensor.


Next >> Accelerometers
