SPEEDBOX / Calibration

Calibration

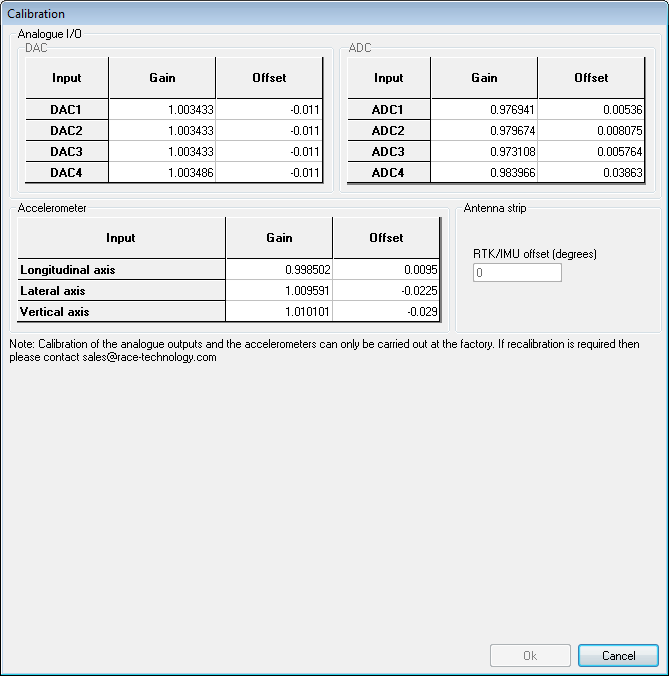

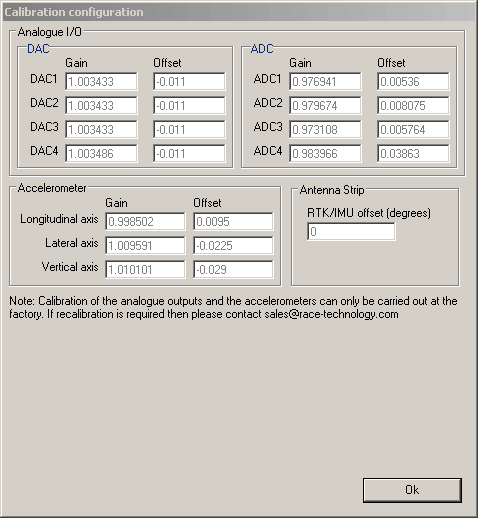

The calibration screen is used to view the calibration values which are used internally in the unit. These are read-only, and can only be changed by Race Technology at the factory.

NOTE:

  • For the SPEEDBOX-MINI, there are no DACs or ADCs fitted, and hence these values will simply read 1 and 0 for gain and offset respectively.
  • For the SPEEDBOX-INS, the IMU is pre-calibrated at the factory and any residual biases are estimated dynamically by the Kalman filter, and hence the accelerometer calibration is not used and will simply read 1 and 0 for gain and offset respectively.
