RTKBASE / Specification

Specification

Correction format	RTCM v3.x
Update rate	1Hz
Modem - Serial	RS232 @ 38400 baud. RTCM v3.x Required RTCM corrections
USB	Configuration / reflash
LCD	Status screens
SIM card format	Micro-SIM (3FF)
Voltage	12V nominal input, minimum of 10V, maximum of 15V
Power consumption	3W
Weight	540g

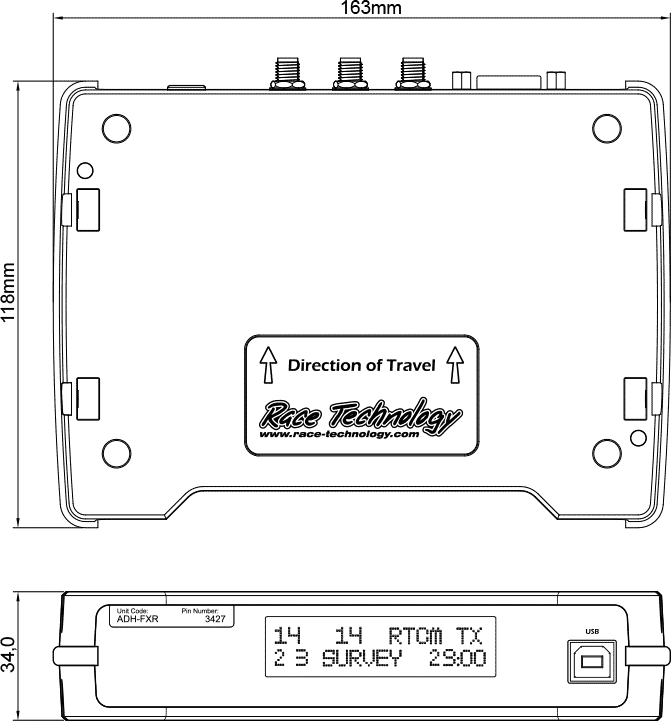

Dimensions	163mm x 118mm x 34mm
Antenna (Main and Aux)	4G LTE compatible
Antenna (GPS)	Dual frequency multi-constellation pinwheel type.
