VehicleInstallationKits / LotusEliseS2

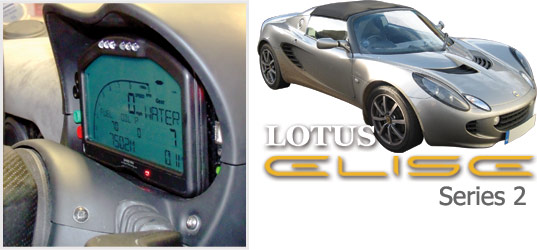

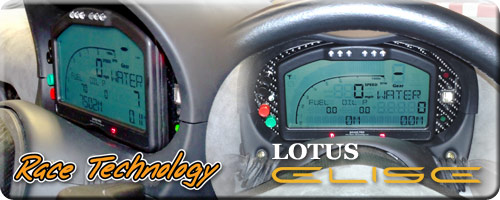

Lotus Elise Series 2 - DASH2 PRO Installation Kit



Compatible with the Toyota ZZ engine.

Complete installation instructions can be downloaded from here: http://www.race-technology.com/upload/Instructions/Elise_S2_installation_instructions.pdf

  • Features Road and Race:
    • RPM scale and shiftlights - scale 0-7000 when water <40oC/0-9000 when water >40oC
    • Water temperature - with warning above 100oC
    • Oil pressure - With alarm less than 20psi when RPM is more than 3000
    • Fuel level - with low fuel warning when below 15%
    • Gear (calculated)
    • GPS data logging with data download via USB
  • Road Mode: (menu item 5.2 - Test)
    • Odometer
    • Trip meter
    • Speed
  • Race Mode: (menu item 5.2 - Race)
    • Best lap time
    • Last lap time
    • Lap counter
  • Warning lights:
    • Left/right indicators
    • Main beam
    • Hand brake
    • Alternator
    • Fog lights
    • Traction control (green LED on right of panel)
    • MIL light "Malfunction Indicator Lamp" (red LED on right of panel)
    • Alarm active (red flash of bi-colour LED)
    • ABS (green of bi-colour LED)
  • Button functions:
    • Up (black)
    • Down (black)
    • Menu (green)
    • Add marker (red)
    • Menu+add lap marker (green+red) = Clear all lap/sector markers (race mode)
    • Menu+Down (green+black lower) = Start logging
    • Trip reset (Steering column button)
