DASH2 PRO default configuration

The default configuration for the DASH2 PRO is as follows:


Configuration sets

All nine configurations are identical

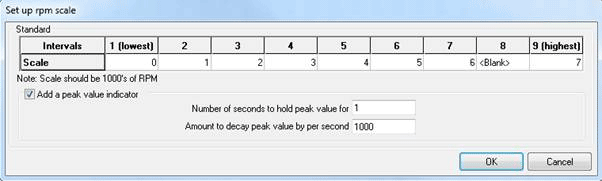

RPM scale

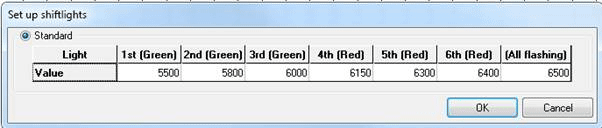

Shift lights

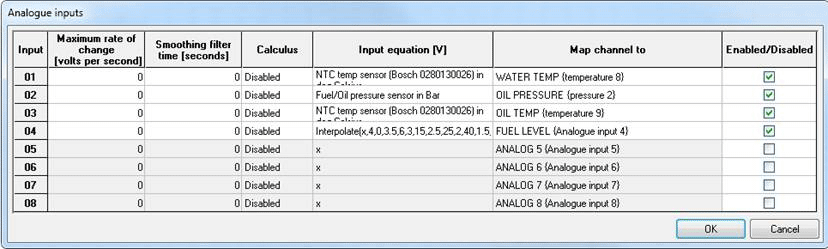

Analogue inputs

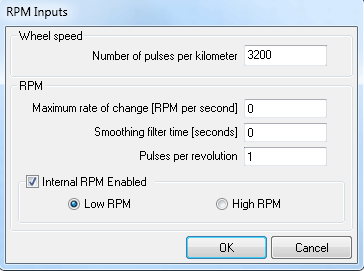

Wheel speed and RPM input

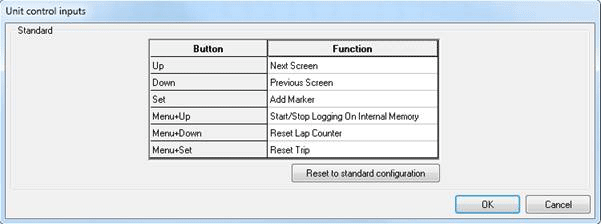

Unit control inputs

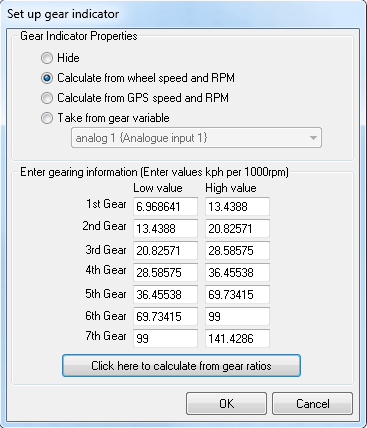

Gear Indicator


Variable source

Everything except the data from the four internal analogue channels and RPM is set to come from any serial port.

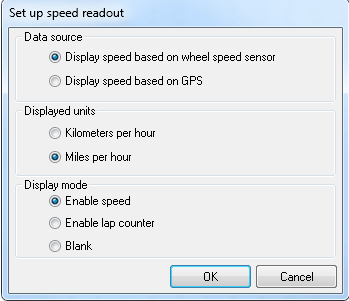

Speed readout

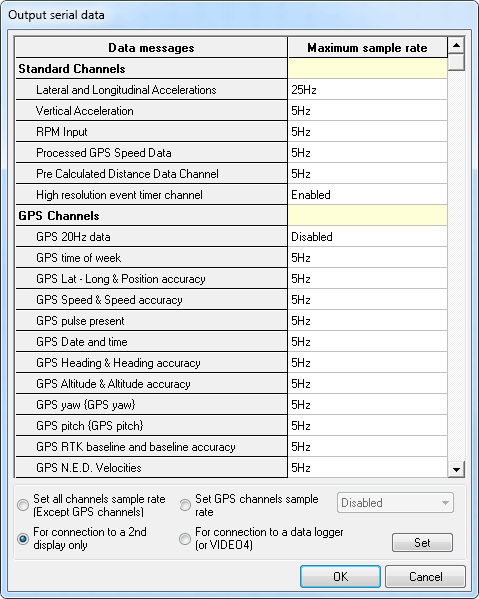

Output serial data

Serial output data set at a slow rate for checking on a PC

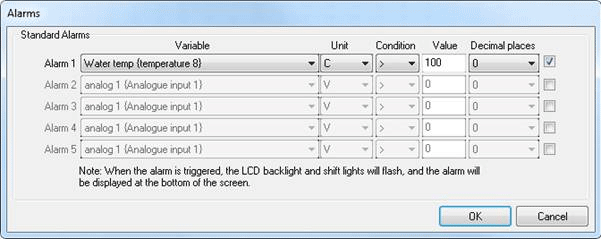

Alarms

High level alarm set to 100 degrees C on water temperature


Reset Variable group

No variables set


Data logging

All channels enabled for logging at maximum rate
File name set to RUN___rr
Directory name set to RTyymmdd

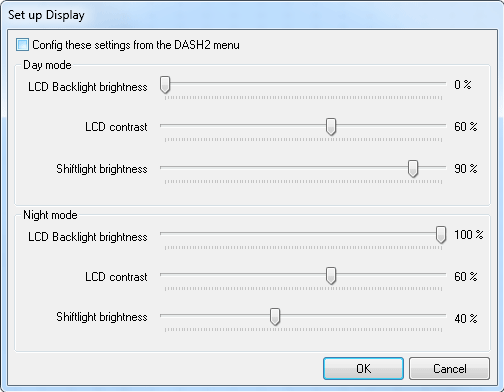

Set up display

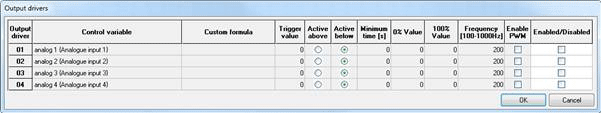

Output drivers

All disabled

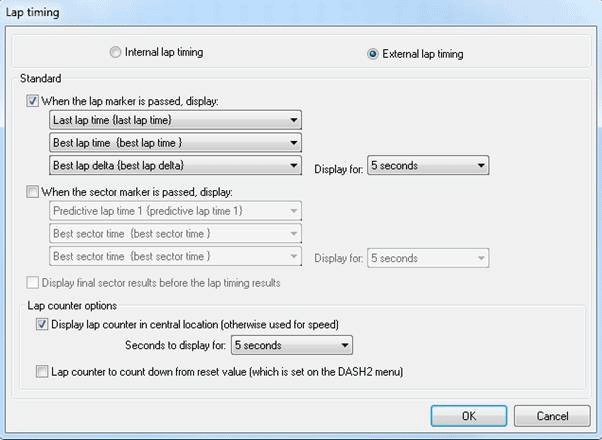

Lap timing

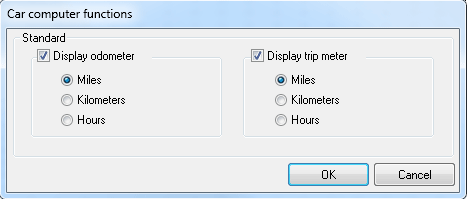

Car computer functions

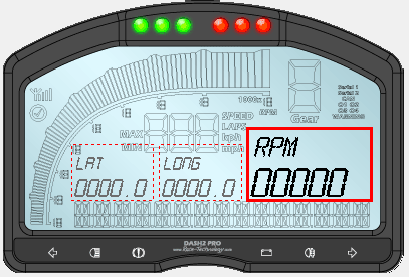

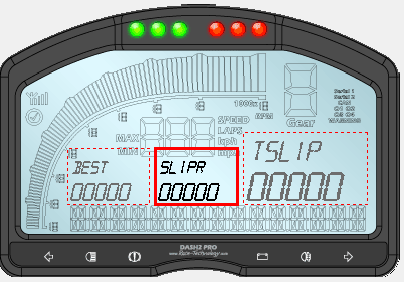

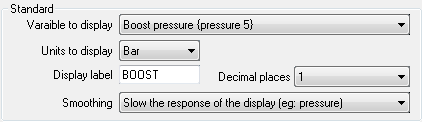

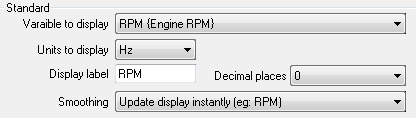

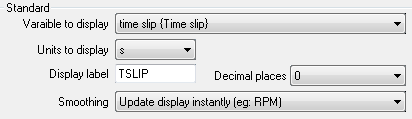

Set up display areas

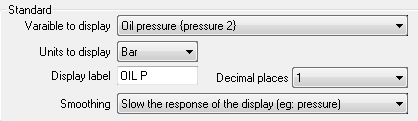

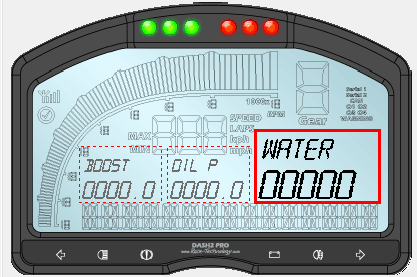

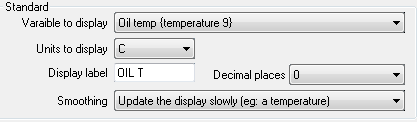

Screen 1

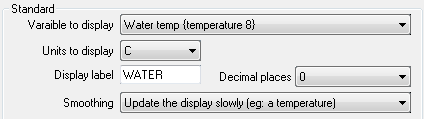

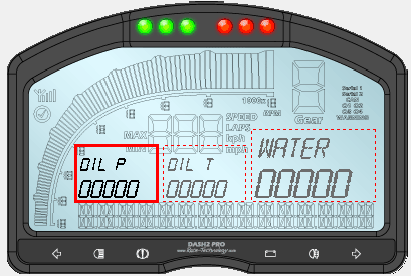

Screen 2

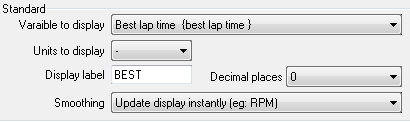

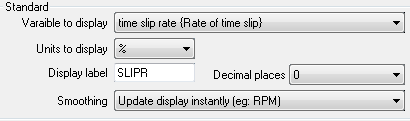

Screen 3

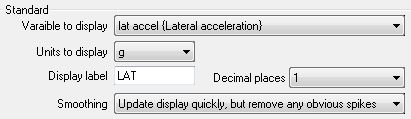

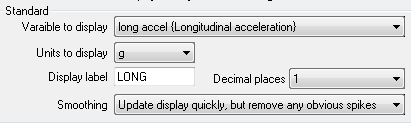

Screen 4


Screen 5

Disabled
