ECUType / CanemsECU

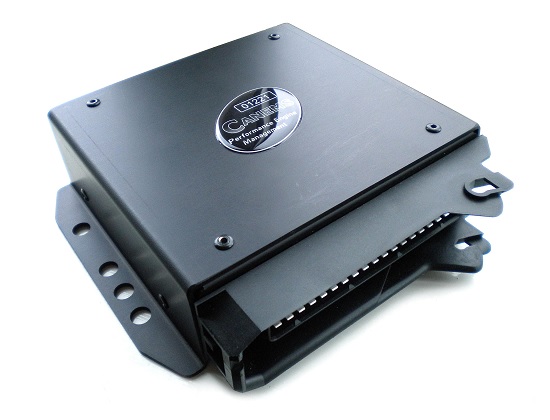

Canems ECU


Compatibility


  • Only available on units 1308 or later


Configuration


  • ECU configuration not required.


Connections

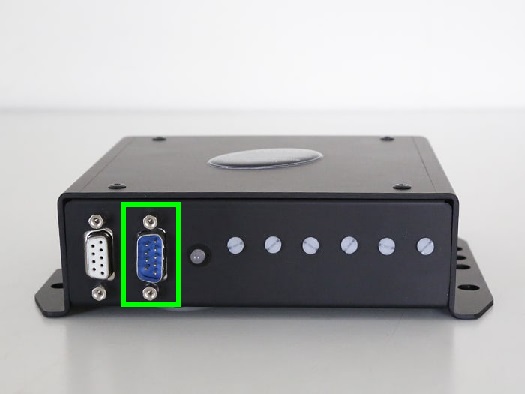

  • ECU has a standard male 9 way d-type
    • 2 Rx
    • 3 Tx
    • 5 Gnd
  • The Race Technology ECU Serial Interface uses the same connector & pinouts, so a null modem cable is required to connect the devices together.
    • A Null modem cable switches pins 2 and 3 with female connectors on both ends (Null modem supplied with ECU Serial Interface).


Data Channel listings

  • Some values may be 10 times larger than expected, depending on the model & year of vehicle. If this is the case, simply divide value in the Analysis of configuration software by 10 to get correct value.
  • 1 ADC (analogue input) count is scaled to 1mV by default.
ECU Message Name Race Technology Data Channel Resolution of Data
Engine speed RPM (Engine RPM) 25rpm
Throttle percentage Throttle position (aux 1) 1%
Manifold pressure Boost pressure (pressure 5) 20mbar
AFR1 Lambda 1 (misc 1) 0.01 lambda
AFR2 Lambda 2 (misc 2) 0.01 lambda
AFR target Auxiliary 2 (aux 27) 0.01 lambda *1
Battery voltage Battery voltage (misc 3) 0.1v
Air temperature Ambient air temp (temperature 1) 1 degree C
Engine temperature Coolant temp (temperature 8) 1 degree C
Oil pressure Oil pressure (pressure 2) 30mbar
Road speed Auxiliary 1 (aux 26) 1 KPH
Oil temperature Oil temp (temperature 9) 1 degree C
Fuel temperature Aux 1 (temperature 25) 1 degree C
Fuel pressure Fuel pressure (pressure 3) 30mbar
Aux ADC 1 analog 21 (Analogue input 21) 1 adc count *2
Aux ADC 2 analog 22 (Analogue input 22) 1 adc count *2
Aux ADC 3 analog 23 (Analogue input 23) 1 adc count *2
Aux ADC 4 analog 24 (Analogue input 24) 1 adc count *2
Aux ADC 5 analog 25 (Analogue input 25) 1 adc count *2
Aux ADC 6 analog 26 (Analogue input 26) 1 adc count *2

Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
