SPEEDBOX / Dimensions

Dimensions

Following figures show the physical dimensions and mounting hole dimensions of the SPEEDBOX. All dimensions given are in millimeters.

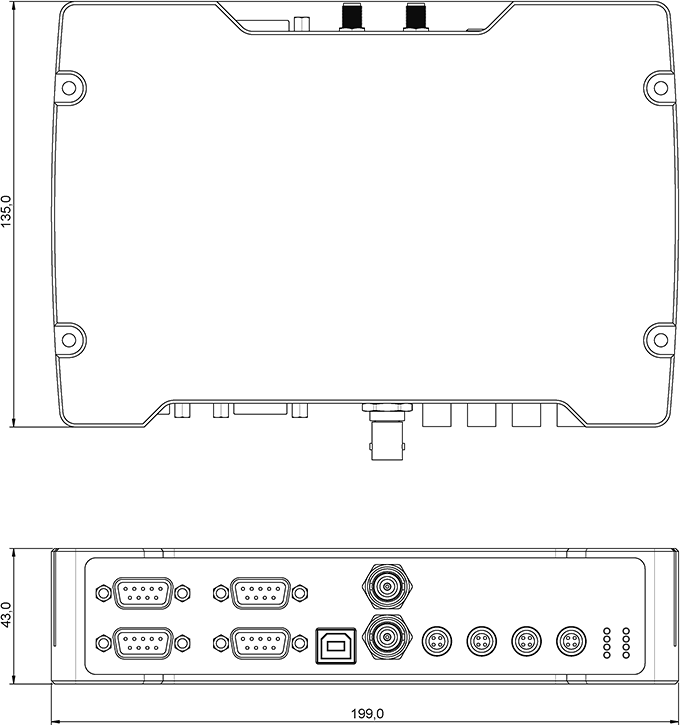

Physical Dimensions

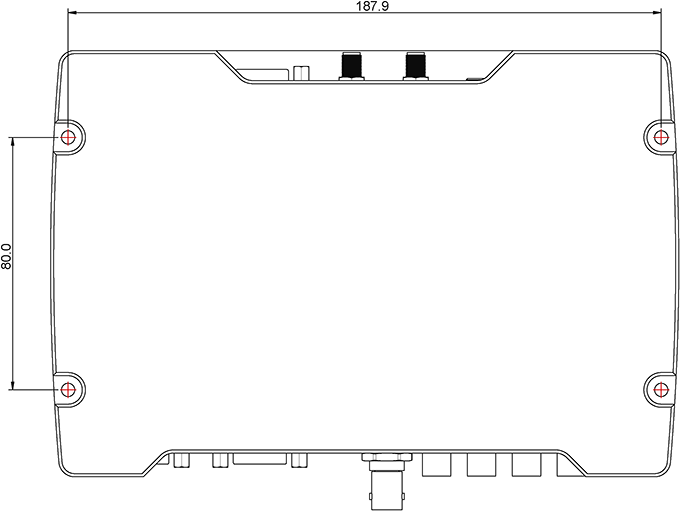

Mounting Hole Dimensions

The mounting holes are non-threaded, and are sized to provide clearance for M4 screws.
