DASH2PROConfiguration / SetUpSpeedReadout

Set up speed readout

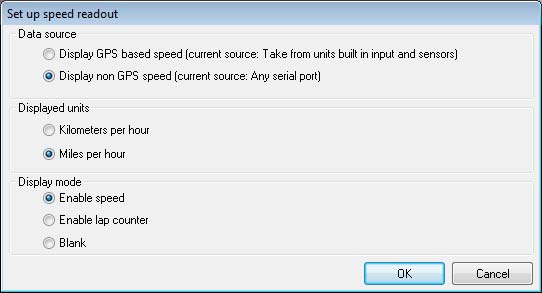

The large speed readout on the DASH2 PRO can be configured to take speed data either from a GPS based speed, such as the internal GPS or attached data logger, or from a non-GPS source such as internal wheel speed input or from an ECU interface. To set up the readout open up the DASH2 PRO configuration software and click on the ‘Set up speed readout’ icon.

The data source used for GPS based speed and Non GPS based speed can be set in the Variable Source menu if required.

For standard road operation the Display mode should be set to Enable speed. If required when racing the speed can be turned off and the display used either only for the lap counter or can be left blank.

Page last modified on February 04, 2015, at 11:03 AM
