MAZDA 3
Compatibility
Configuration
ECU does not require configuration.

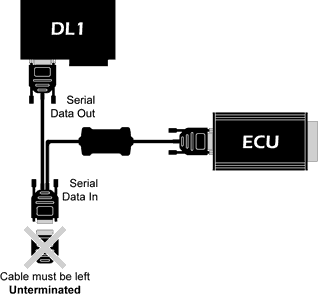

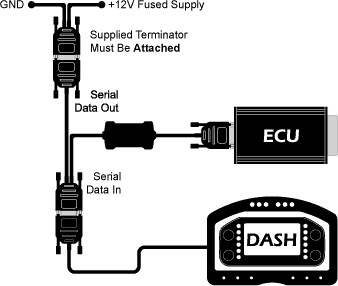

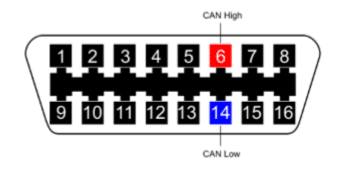

Connections
Note: Race Technology CAN interface only; Protocol requires OBD messages and direct CAN messages which is currently not available on DL1 or DASH2pro direct CAN inputs.
Data Channel listing
Variable file
- Base variable files available in factory Race Technology V10 Cloud area.

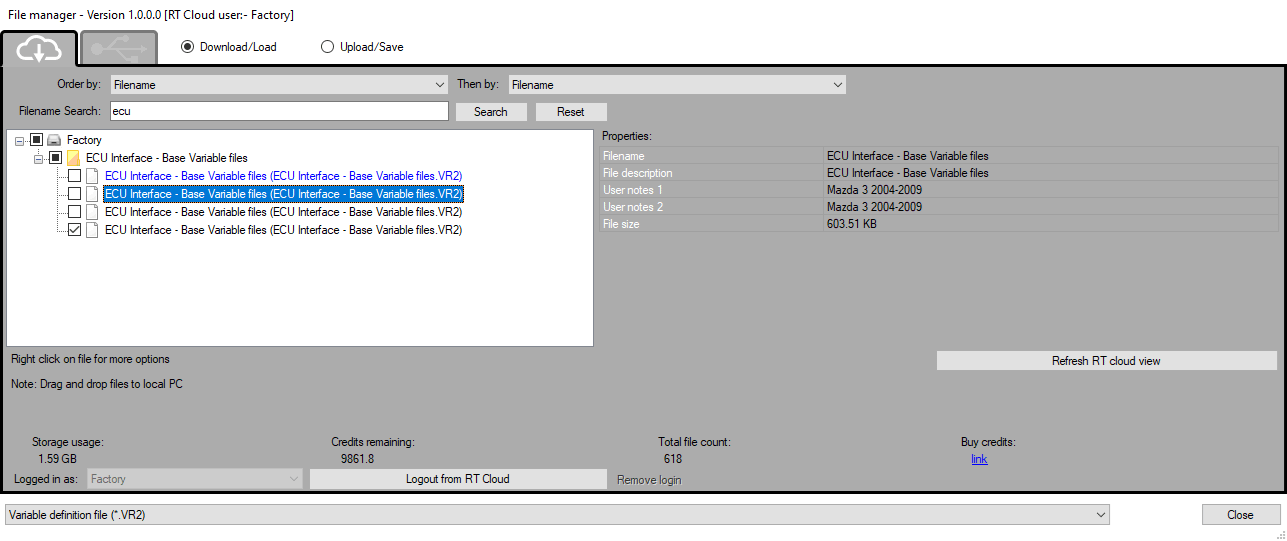

- Variable files contain correct channel naming and units for ECU channels, it is strongly advised to load this into the Race Technology software. Open Variable Manager software from Race Technology program launcher > select .VR2 from the drop down box > type ECU into search bar > open ECU Interface - Base Variable files directory > Click the files and check user notes for vehicle make & model > select desired file then drag & drop onto desktop:
Open Var and CAN Manager from Race Technology program launcher > Load new variable file using File > Import a variable file:
| ECU Message Name
| Race Technology Data Channel
| Resolution of Data
|
| MZ_RPM
| RPM (Engine RPM)
| rpm
|
| MZ_WH_SPEED_FL
| Fuel inj 1 cut (aux 14)
| km/h .1
|
| MZ_WH_SPEED_FR
| Fuel inj 2 cut (aux 15)
| km/h .1
|
| MZ_A_STEER_ANG
| Steering angle (angle 3)
| deg
|
| MZ_GEAR
| Fuel inj 8 PW (aux 13)
| #
|
| MZ_TRASM_OIL_T
| Gearbox temp (temperature 10)
| °C
|
| MZ_TPS
| Throttle position (aux 1)
| %
|
| MZ_PPS
| Lambda 1 short trim (aux 2)
| %
|
| MZ_BRAKE_PR
| Fuel aux temp comp (aux 30)
| bar
|
| MZ_ECT
| Coolant temp (temperature 8)
| °C
|
| MZ_INTK_AIRT
| Inlet pre turbo 2 (temperature 3)
| °C
|
| MZ_BOOST
| Boost pressure (pressure 5)
| bar .1
|
| MZ_BARO
| Ambient air pressure (pressure 1)
| #
|
| MZ_IGN_ADV
| Ignition angle (angle 2)
| deg
|
| MZ_FUEL_LEVEL
| Auxiliary 2 (aux 27)
| %
|
Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
