Fartstrup (CAN)

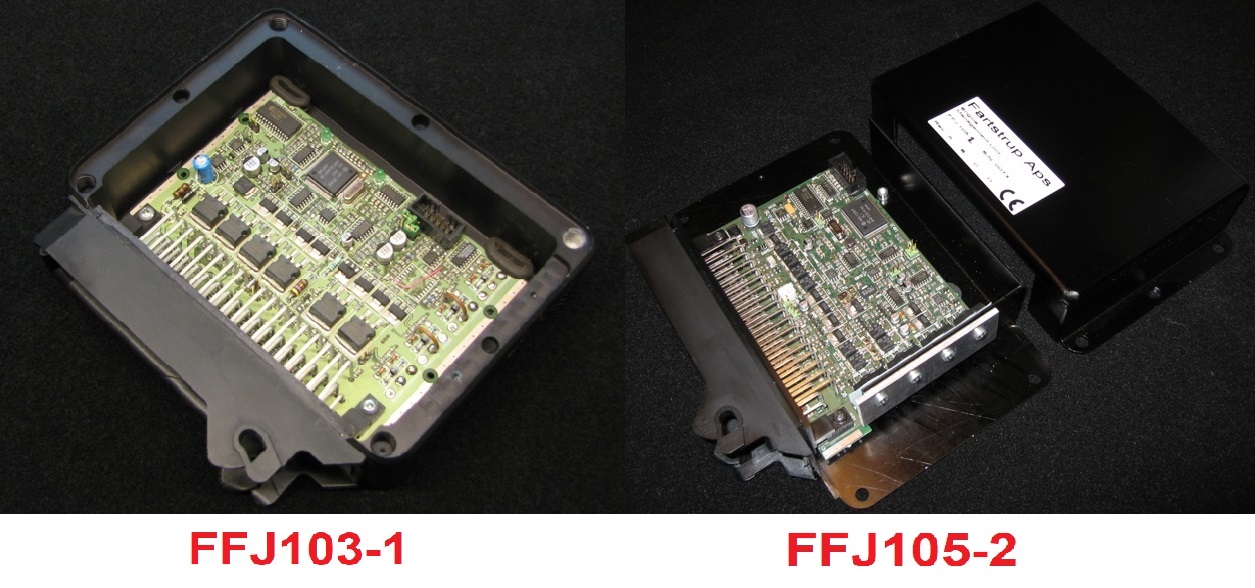

Compatibility
Configuration
ECU configuration not required.
Connections
This ECU should be connected via CAN connections:
FFJ103-1
| CAN Connections
|
|
| FFJ103-1 ECU
| Race Technology
|
| CAN High
| Pin 49
| RT CAN High (White)
|
| CAN Low
| Pin 9
| RT CAN Low (Red)
|
FFJ105-2
| CAN Connections
|
|
| FFJ105-2 ECU
| Race Technology
|
| CAN High
| Pin 49
| RT CAN High (White)
|
| CAN Low
| Pin 9
| RT CAN Low (Red)
|
Data Channel Listing
| ECU Message name
| Race Technology Data Channel
| Resolution of Data
|
| RPM
| RPM (Engine Speed)
| 10 rpm
|
| ECT
| Coolant temp (temperature 8)
| 0.1°C
|
| IAT
| Inlet post intercooler 1 (temperature 6)
| 0.1°C
|
| EOT
| Oil temperature (temperature 9)
| 1 mbar
|
| AAT
| Ambient air temp (temperature 1)
| 0.1°C
|
| TPS
| Throttle position (aux 1)
| 1
|
| Lambda
| Lambda 1 (misc 1)
| l
|
Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
