Typical system

Typically the DASH4PRO FD is designed to be used directly with the DL1 data logger. It can, however, also be used with a number of our other products, including the DL2 and SPEEDBOX. It can even be connected directly to an ECU interface to display ECU parameters only.

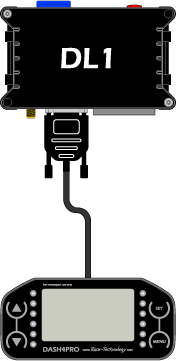

Data Logger and DASH4PRO FD:

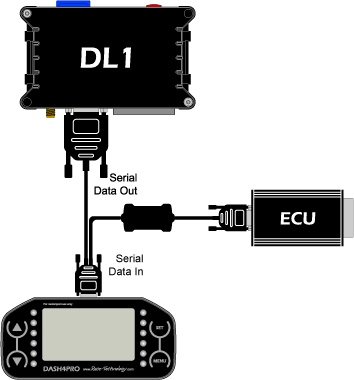

Data Logger, DASH4PRO FD and ECU Interface:

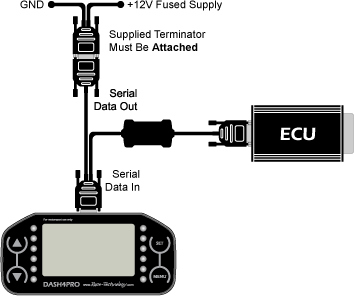

DASH4PRO FD and ECU Interface:

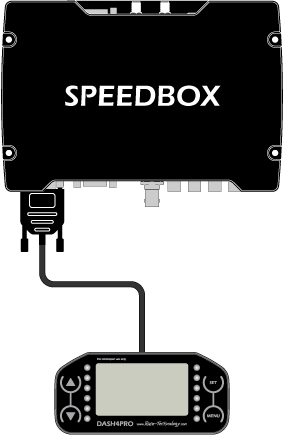

DASH4PRO FD and SPEEDBOX or SPEEBOX MINI:

Note: If you intend to use the DASH4PRO FD as a standalone unit (i.e. without a Race Technology data logger or video recorder) connected to your ECU, you will also need to purchase the PC programming lead. This will allow configuration directly from your PC's serial port.

Note: Following sentence has a link that opens a page with more connection options; that page needs to be updated with all possible connections.

The different ways in which the DASH4PRO FD can be used is illustrated here.
