Connector and Wiring Loom Details
Connector Pinout
The BRAKEBOX unit has 3 connectors: CONN1, GPS1 and GPS2. Only CONN1 and GPS1 are used, GPS2 is simply terminated internally to keep the case waterproof. GPS1 is a female SMA connector, and the required antenna is a 3.3V active GPS antenna. CONN1 is a 12 pin male Binder 723-series connector. The pinout of CONN1 is shown below:

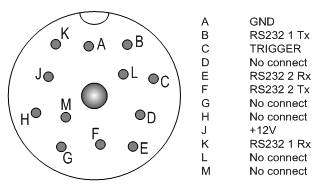

CONN1 (12 pole male Binder 723-series) pinout
"WARNING": To avoid any possible damage to the car paintwork, please take care when mounting magnetic GPS antennas. In particular make sure that there are no dust or grit under the antenna. In some cases it maybe required to add additional protection to the paintwork prior to mounting the antenna to avoid damage.
Wiring Loom Pinout
The wiring loom supplied with the BRAKEBOX contains a 12 pole female connector to connect to CONN1, a female BNC connector for the trigger input, 2 9-pin male D-sub connectors for RS232, and tinned wire for connecting to +12V DC supply. RS232-1 is to connect to the display, and RS232-2 is to connect to a serial printer and/or PC. The full pinout of the wiring loom is shown below:
