AUDI A3, A4, TT (1800 cc) and A6 (1800-2000 cc)

This CAN based adapter works with the following car models:

Audi A3 1800 20V Turbo 180 CV

Audi A4 1800 20V 125 CV

Audi A4 1800 20V 127 CV

Audi A4 1800 20V Turbo 150 CV

Audi A4 1800 20V Turbo 163 CV

Audi A4 1800 20V Turbo 190 CV

Audi A4 2000 20V 130CV

Audi A6 1800 20V 125CV

Audi A6 1800 20V Turbo 150 CV

Audi A6 1800 20V Turbo 180 CV

Audi A6 2000 20V 130 CV

Audi TT 1800 20V Turbo 150 CV

Audi TT 1800 20V Turbo 180 CV

Audi TT 1800 20V Turbo 225 CV

ECUType / AUDIA3A4TT-1800ccAndA61800-2000cc

AUDI A3, A4, TT (1800 cc) and A6 (1800-2000 cc)

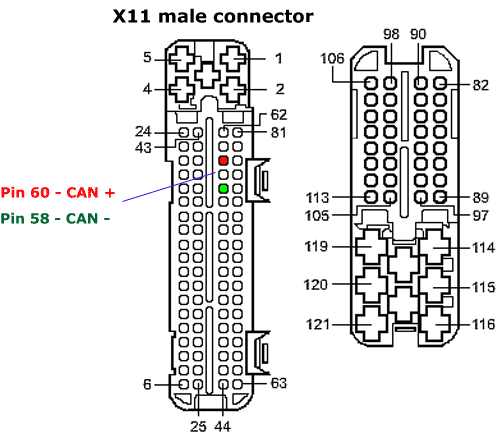

Connections

Channel Listing
