Lotus Clusters 04-07

This CAN based adapter works with Model Years 2004-2007 for the following cars:

Elise S,
Exige R,
Exige
Exige S,
Exige Cup,
Exige GT
2-11

Connections

Connection through the OBDII plug:

CAN+ - pin 6
CAN- - pin 14

VBatt (+12V) - pin 16
chassis GND - pin 4.

Note that OBD is not powered by the vehicle master switch.

Connection through the stock dashboard:

There are 2 connectors on the back of the standard lotus dashboard, the CAN is available from one of the connectors and the power on the other.

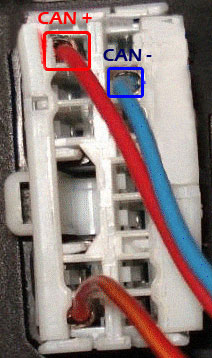

The CAN data is available from the 12 pin connector:

CAN+ - pin 1 (red wire)
CAN� - pin 7 (blue wire)

And the power is available from the other connector:

Channel listing

The channels of data that are available are:
