ECUType / Nissan350Z2006-2009

Nissan 350Z

This CAN based adapter works with model Years 2006-2009 for Nissan 350Z.

Connections

CAN data is available through the OBDII plug or ECU front connector.

OBD Connector Pinout (front view):

Pin 6 - CAN High
Pin 14 - CAN Low

ECU Connection:

Nissan 350Z 2006

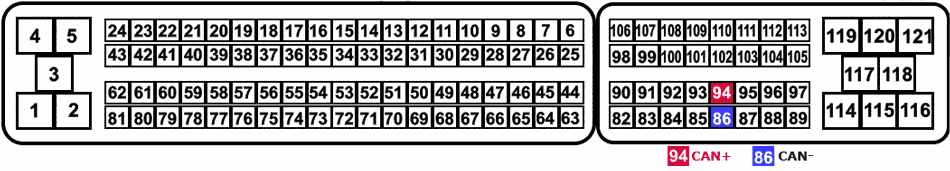

Use the pins 94 and 86 of 121 pin connector:

Pin 94 - CAN +
Pin 86 - CAN -

Nissan 350Z 2007

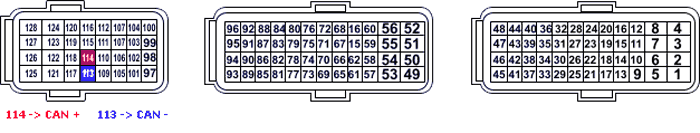

Use the pins 114 and 113 of 128 pin connector:

Pin 114 - CAN +
Pin 113 - CAN -

Channel Listing

The channels of data that are available are:
