ECUType / SEATLeon2000cc

SEAT Leon 2000 cc

This CAN based adapter works with the following car models:

Seat Leon 2000 16V TFSI 185 CV
Seat Leon 2000 16V TFSI 200 CV
Seat Leon 2000 16V TFSI 240 CV

Connections

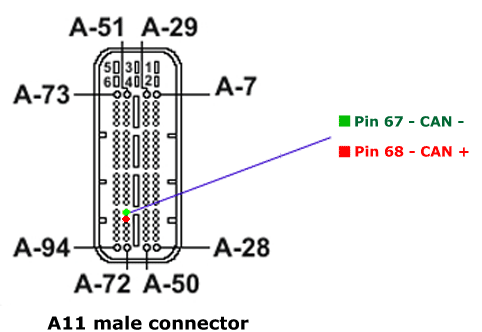

The CAN data is available from the A11 mail connector:

CAN+ - Pin 68
CAN- - Pin 67

Channel Listing

The channels of data that are available are:
