ECUType / SiemensEMSSDI31

Siemens EMS SDI 3.1

This CAN based adapter works with the following cars:

997 MK2 GT2
997 MK2 Turbo
997 MK2 Turbo S
997 MK2 Carrera 3.6 Coup� / Cabrio / Targa
997 MK2 S 3.8 Coup� / Cabrio
997 MK2 Carrera 4 3.6 Coup� / Cabrio
997 MK2 Carrera 4 3.8 Coup� / Cabrio / Targa

Connections:

The CAN data is available from the 58 pins connector:

CAN+ - Pin 54
CAN- - Pin 41

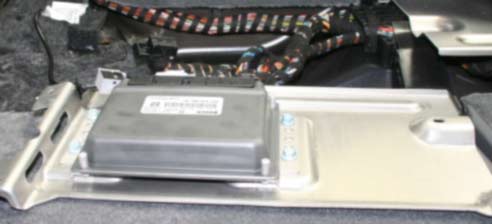

Note that the ECU below the rear seats under the cover:

Channel Listing:

The channels of data that are available are:
