ECUType / VOLKSWAGENGOLF1800-2000-2300cc

VOLKSWAGEN ECU GOLF 1800-2000-2300 cc

This CAN based adapter works with the following car models:

Volkswagen Golf 1800 20V Turbo 125 CV
Volkswagen Golf 1800 20V Turbo 150 CV
Volkswagen Golf 1800 20VTurbo 180 CV
Volkswagen Golf 2000 8V Turbo 115 CV
Volkswagen Golf 2300 V5 170 CV

Connections

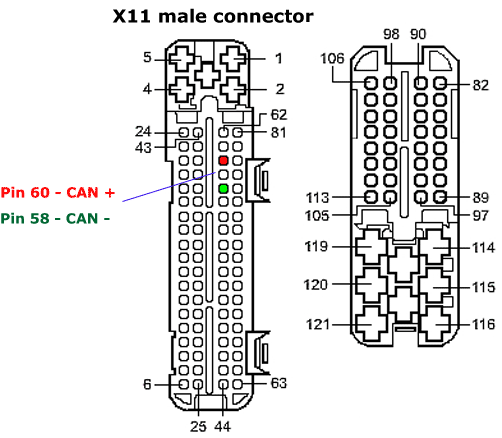

The CAN data is available from the X11 mail connector:

CAN+ - Pin 60
CAN- - Pin 58

Channel Listing

The channels of data that are available are:
