Alarms

Alarms can be set to monitor critical variables. Setting up an alarm (for a high temperature for example) will alert the driver to the variable being out of normal range with a pop up notification on the DASH5 PRO. To set up alarms select Configuration -> Alarms

Set the alarm “Trigger Conditions” based on a single variable, or a combination of variables. For example Oil Pressure < 3 Bar AND RPM > 2500.

Alarm settings

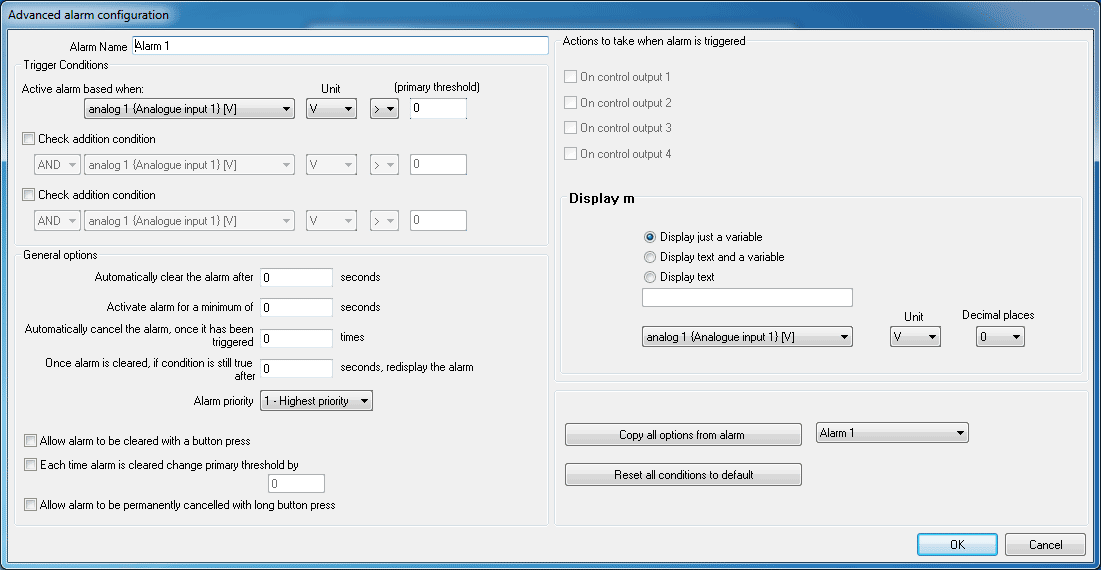

With the alarm settings on the DASH5PRO it is possible to set up to 99 unique alarm conditions. Each alarm can be enabled or disabled individually. To configure an alarm first enable it by ticking the box and then click on the alarm name to bring up the configuration screen:

With the trigger conditions in the "Advanced alarm settings" dialog, it is possible to set up to three conditions for triggering the alarm. In the above example the alarm is set to come on when the oil pressure is below 3 bar and the engine speed is above 2500. The logic is processed in the format:

The general options for the alarm set up how the alarm is cleared, there are a number of options here:

Automatically clear the alarm after xx seconds

This can be used so that the alarm will show for a set period of time on the display and will then clear automatically without the driver needing to press any buttons to clear the alarm

Activate alarm for a minimum of xx seconds

When this option is set the alarm can not be cleared until this time has elapsed, even if a button is pressed in this time period to clear the alarm

Automatically cancel the alarm once it has been triggered x times

This option can be used to stop an alarm condition re-occuring many times and having to be cleared every time. For example if there is a water temperature alarm the driver might well know all about the condition but not want to be reminded of it on every lap, so it can be set to stop being displayed after a set number of times. USE WITH CAUTION!

Once alarm is cleared, if condition is still true after xx seconds, redisplay the alarm

This option is very useful for giving information on an alarm where the condition persists for a long length of time. For example if the water temperature goes too high and the alarm is activated, using this option it is possible to have the alarm trigger again 30s or a minute later if the condition is still true

Alarm priority

There are 10 different levels for alarm priority, if more than one alarm is activated at the same time the alarm with the highest priority will show up on the screen first. Also if an existing alarm is being displayed and a new alarm with a higher priority is triggered then the highest priority alarm will replace it.

For example a low fuel alarm would be set as a lower priority to a high coolant temperature alarm.

Allow alarm to be cleared with a button press

When set the alarm can be cleared by pressing a button, otherwise the user needs to wait for the timeout to occur.

Each time alarm is cleared change primary threshold by xx

This function can be used to increase or decrease a threshold so that the driver is not bothered again unless the situation gets worse. USE WITH CAUTION

Allow alarm to be permanently cancelled with long button press

When pressed and held for over 3 seconds the alarm will be disabled until the unit has been turned off and on again. USE WITH CAUTION

Actions to be taken when alarm is triggered

Alarms can be used to turn on the control outputs^*, reacting to the alarm. Typically these would be used to turn on a fan, additional warning light or pump etc. Select the control output to turn on from the list:

* Requires “Low Side Driver” option for this function.

Record the alarm in the alarm register

When set the alarm information will be stored in the internal alarm register. This can be very useful for showing which alarms were present during driving, ideal for use in vehicles which are rented out to paying customers!

Display a variable at left of screen
Display a variable at middle of screen
Display a variable at right of screen

When the alarm is activated any value can be shown in any of the three main display areas, this does not have to be the value which triggered the alarm

Display information at the bottom of the screen

A custom text string, a variable value, or both can be displayed across the bottom of the screen when the alarm is activated

Alarm conditions can be copied from one alarm to another by selecting the required source alarm and clicking ‘Copy all options from alarm’ at the bottom of the screen.
