Part Numbers

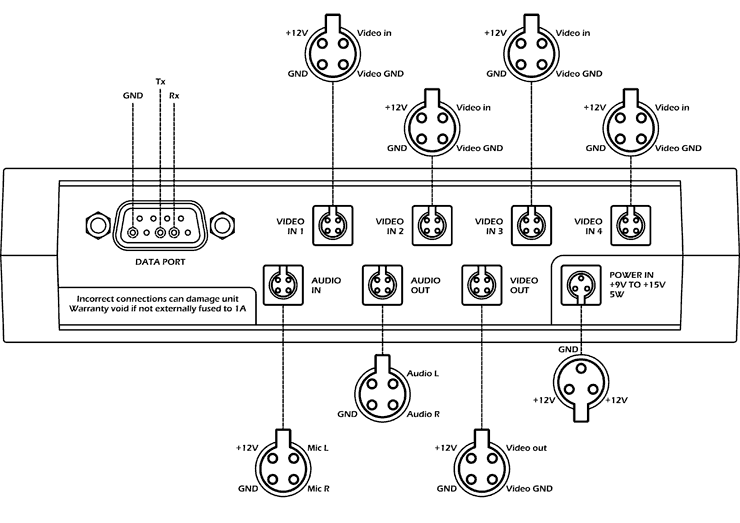

Data port

9 pin sub-D

Video in 1 – 4

4 pin round connector (binder part number 09 9767 70 04)

Audio in

5 pin round connector (binder part number 09 9789 71 05)

Audio out

5 pin round connector (binder part number 09 9789 71 05)

Video out

4 pin round connector (binder part number 09 9767 70 04)

Power

3 pin round connector (binder part number 09 9747 70 03)
